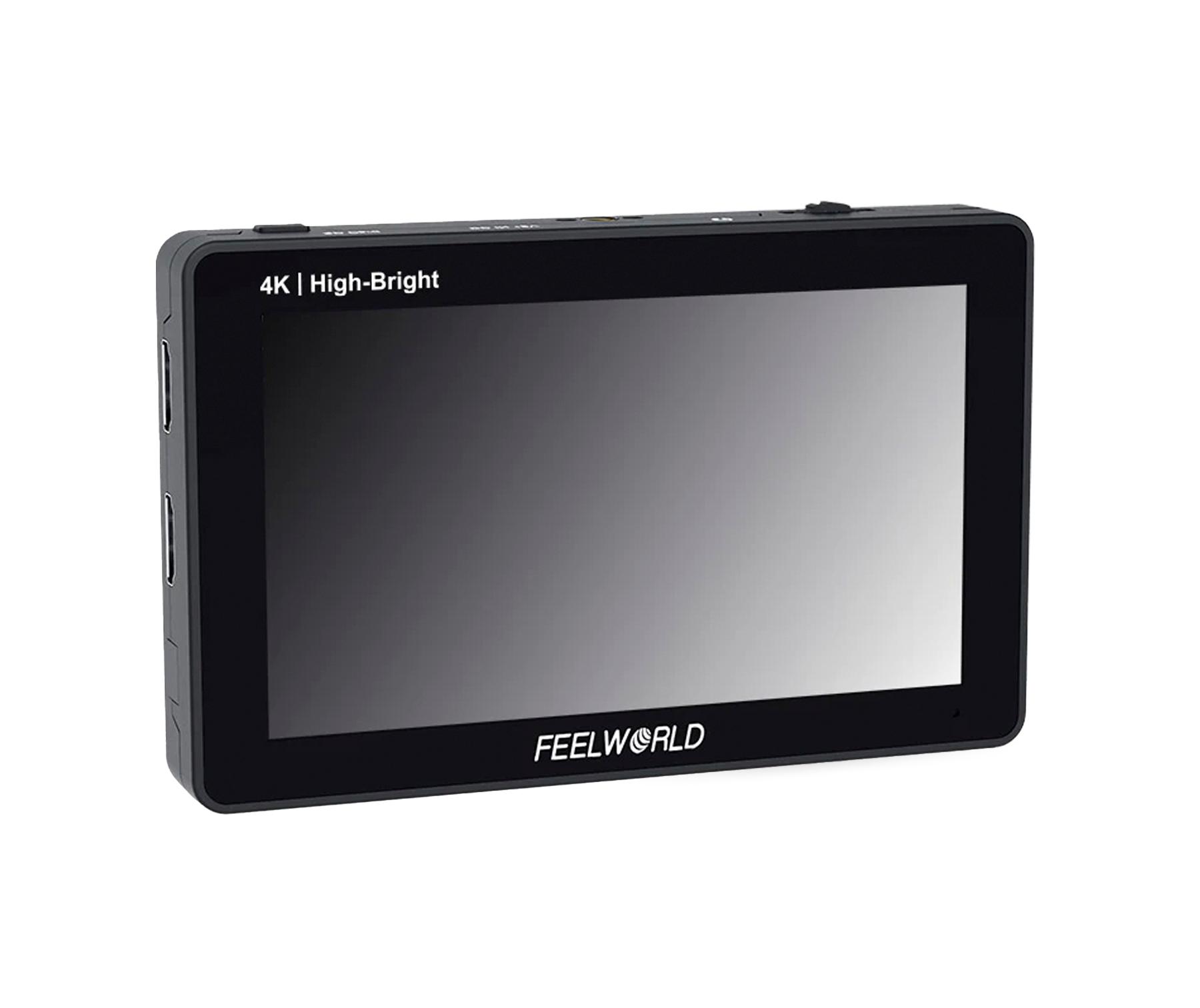

Feelworld F6 Plus X 5.5" 1600nit 4K HDMI Monitor
Product Highlights
- Touchscreen 1920 x 1080 Display
- Up to DCI 4K HDMI Input; HDMI Output
- LUT Support via SD Card Slot
- DC, USB, L-Series/LP-E6 Power Support
- HDR, Vectorscope, Histogram & More
Related Products
5.5" 1600nit Field Monitor
FEELWORLD F6 PLUSX is a high brightness 1600nit 5.5 inch HDMI monitor that’s perfect for vloggers, creatives and photographers. Go anywhere and see everything exactly how you want it with F6 PLUSX.
Full HD IPS Panel
Viewing clearly and capturing every detail with confidence
With an extremely high-resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details, and accurately reflects the original colors.
1600nits, Daylight Viewable
Backed by 1600nits of brightness, F6 PLUSX isn't afraid to get a little sun. The screen is visible clearly even outdooor shooting, no need to use sun-hood..
Sensitive Touch Screen Control
The innovative touchscreen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and outputting specific color data. Loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you also can load the custom .cube file via SD card(up to load 32).

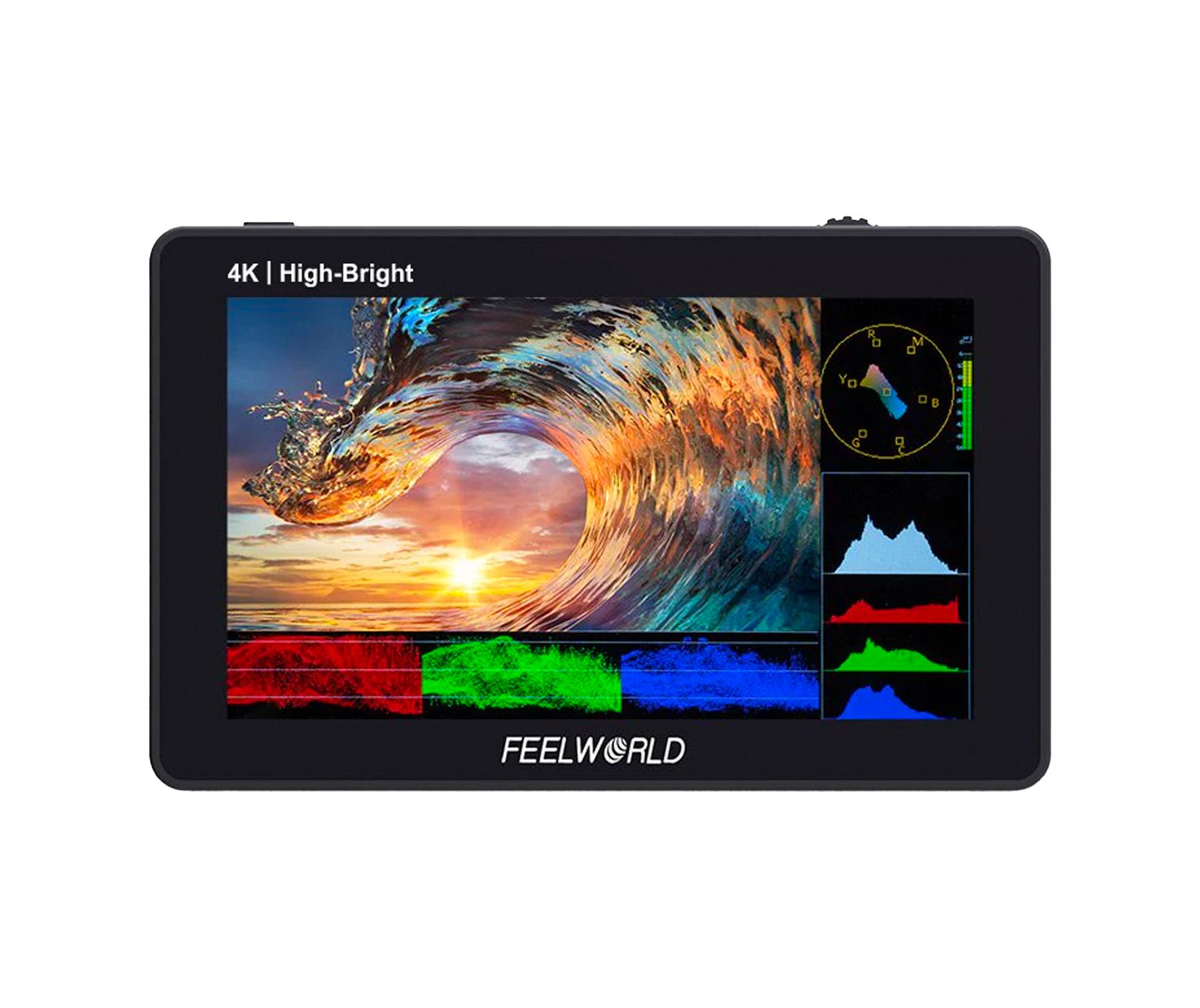

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. F6 PLUSX becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

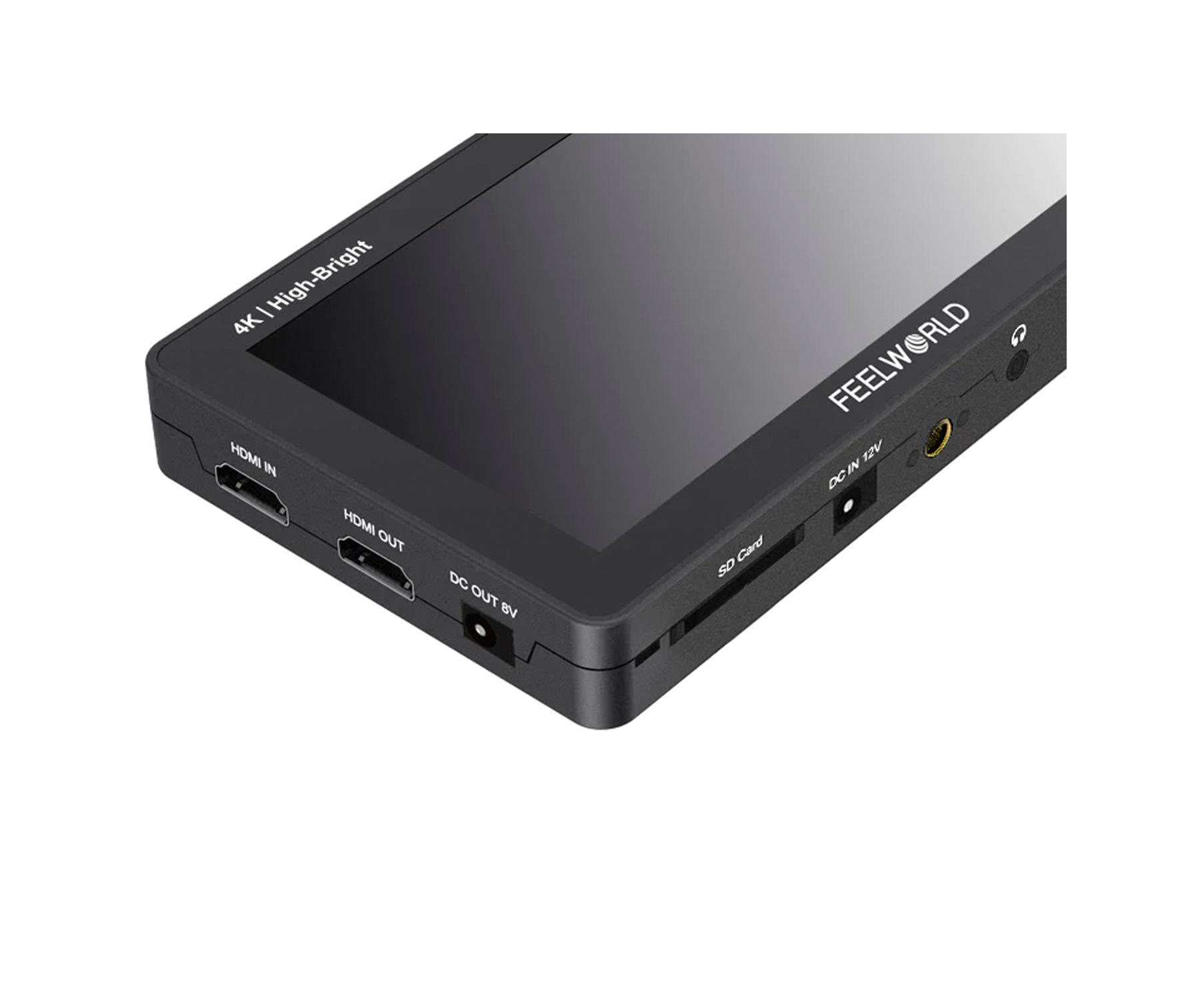

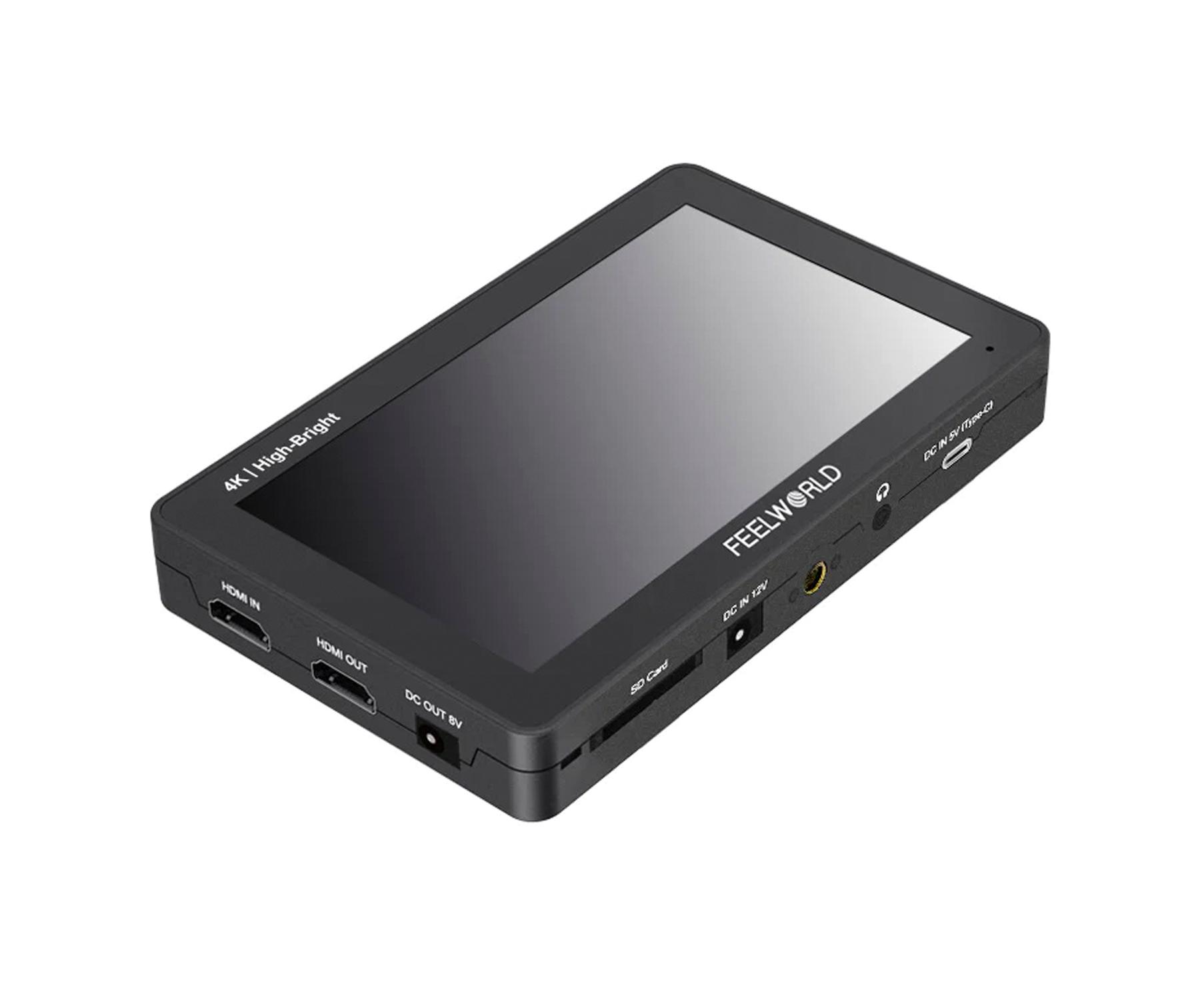

4K HDMI Input and Output
Support 4K@30Hz signal input and output, transmitted without loss, and the screen is clearer.

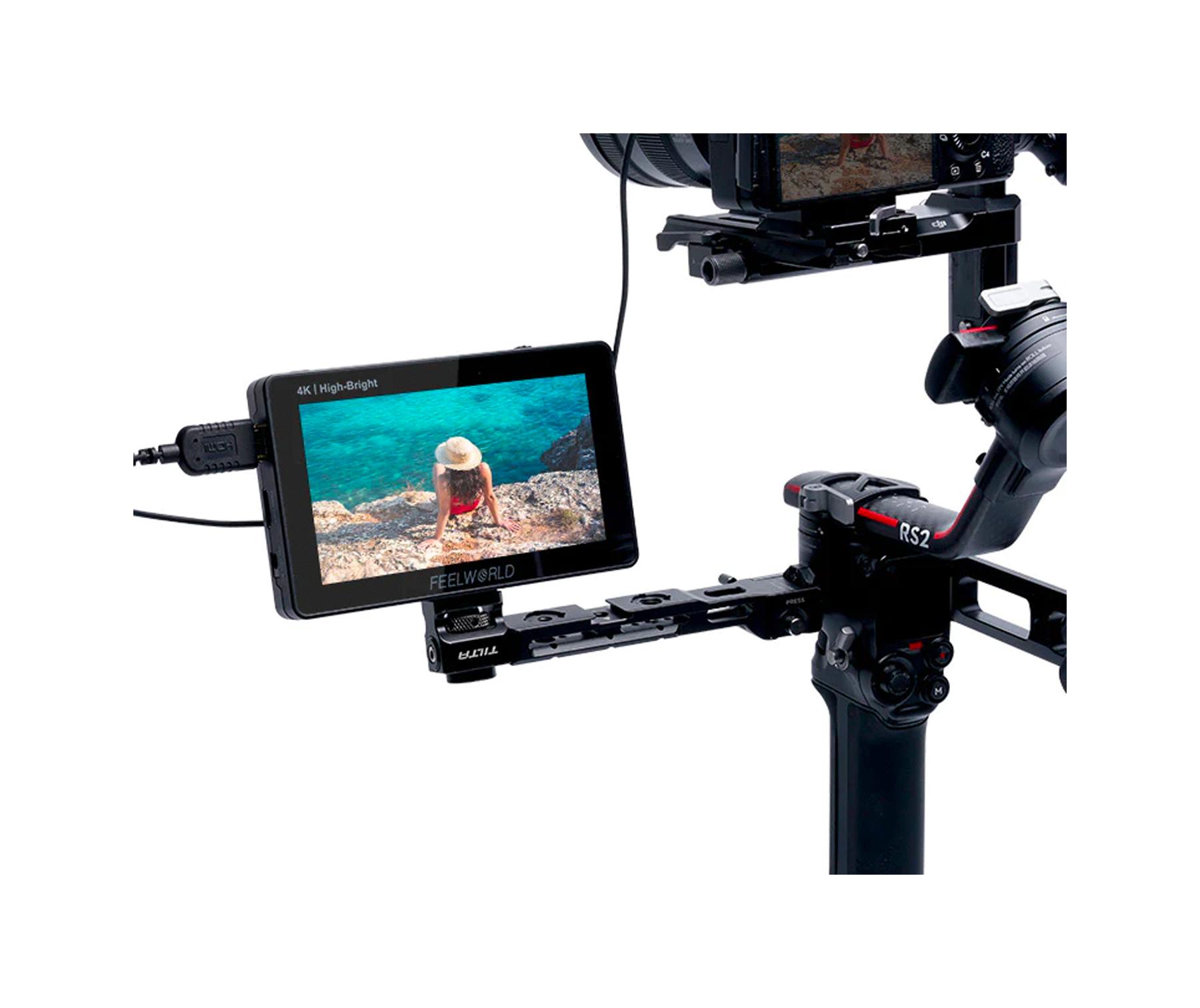

DC OUT, Power Your DSLR or Mirrorless Camera
F6 PLUSX provides auxiliary power out, allowing shooters to power their cameras. With a battery adapter cable (Optional), the F6 PLUSX extends camera run-time, while providing a more usable display.

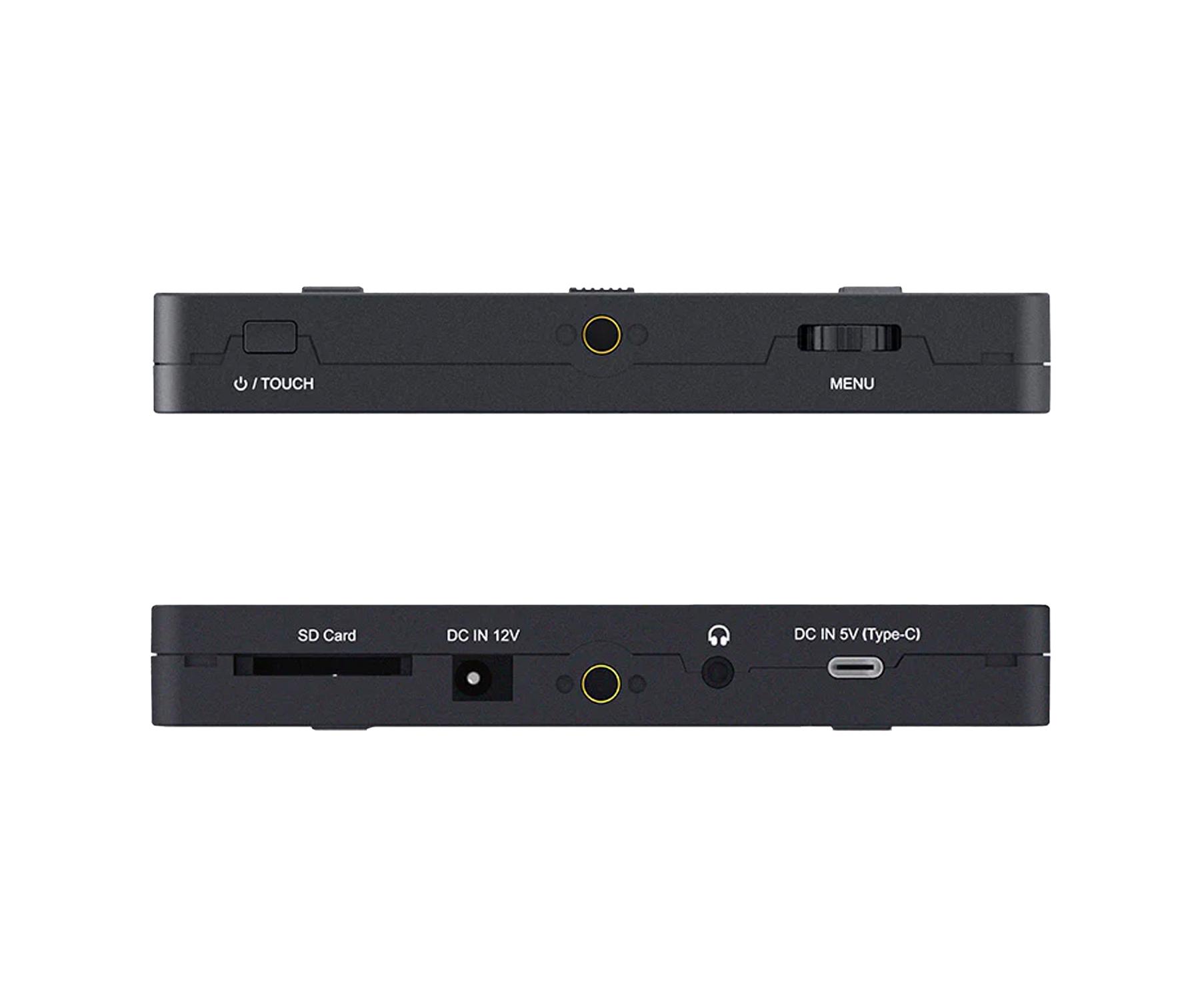

Multiple Power Supply Ways
F6 PLUSX has multiple power supply ways, providing strong power endurance.
1.Power supply through 12V DC power input (can be using 12V/1.5A adapter)

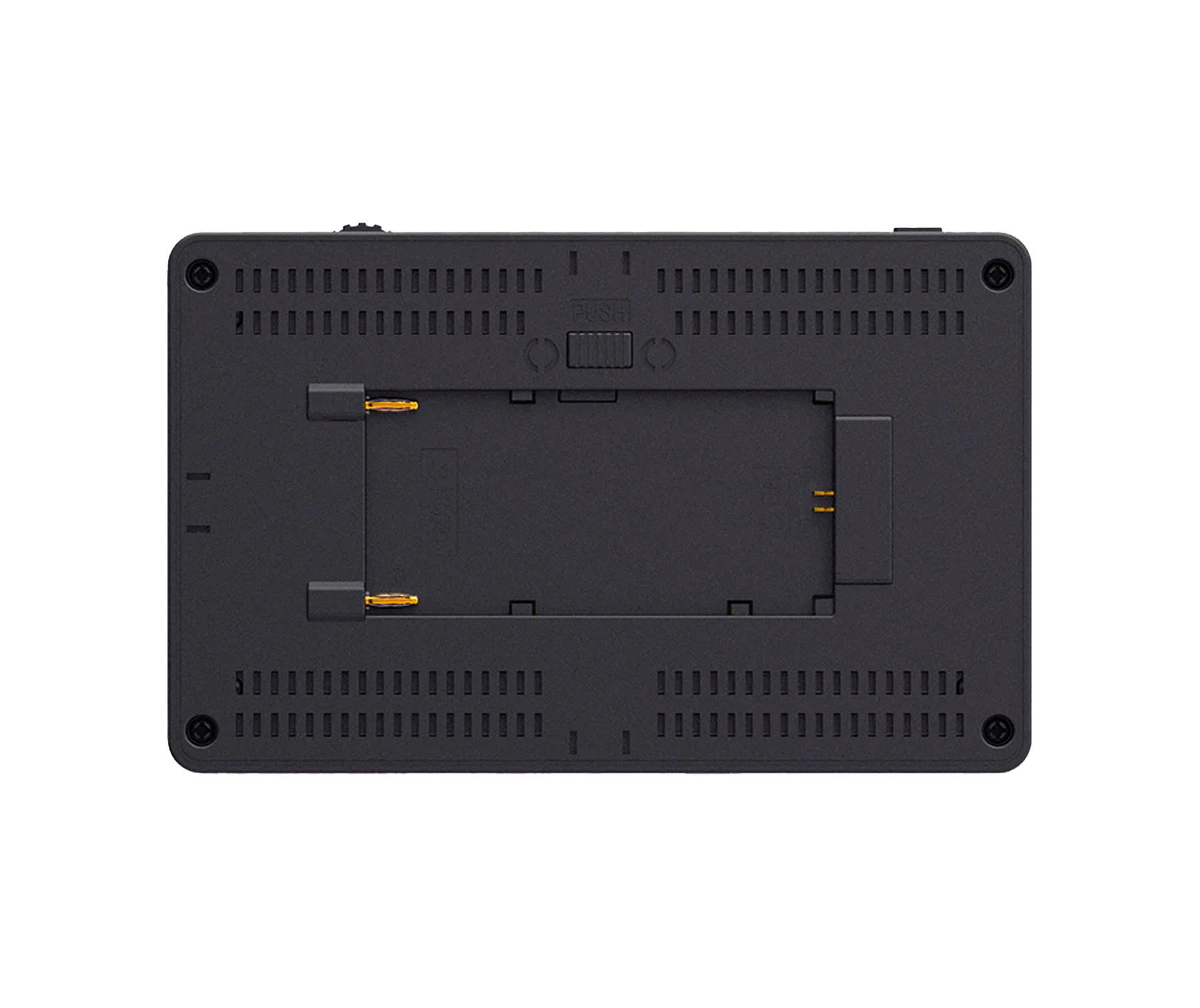

2. For outdoor shooting, you can power supply by dual-purpose battery plate (compatible with Sony NPF series battery and Canon LP-E6 battery).
3. Supports 5V Type-C input, which can be powered by a mobile phone charger or power bank. (At least 5V/2A).
Multi-Languages Support
F6 PLUSX built in up to 11 languages, meets the different needs.
Multiple Mounting Points, Meet Different Needs of Monitoring
The monitor features 3 standard 1/4” mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

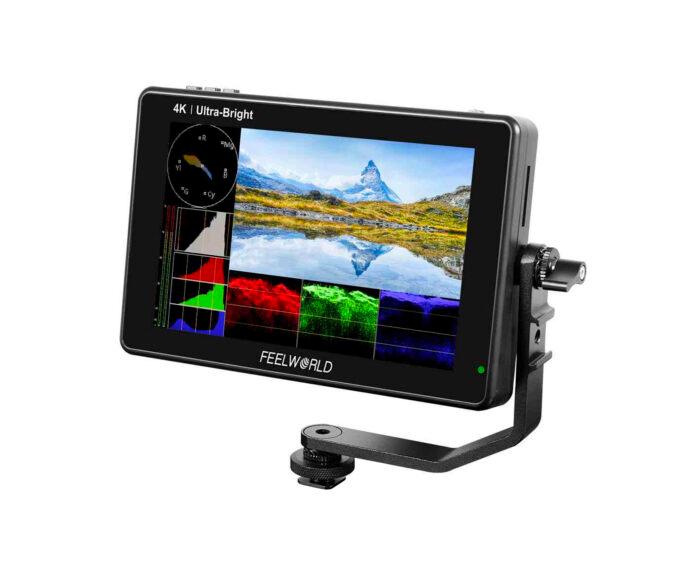

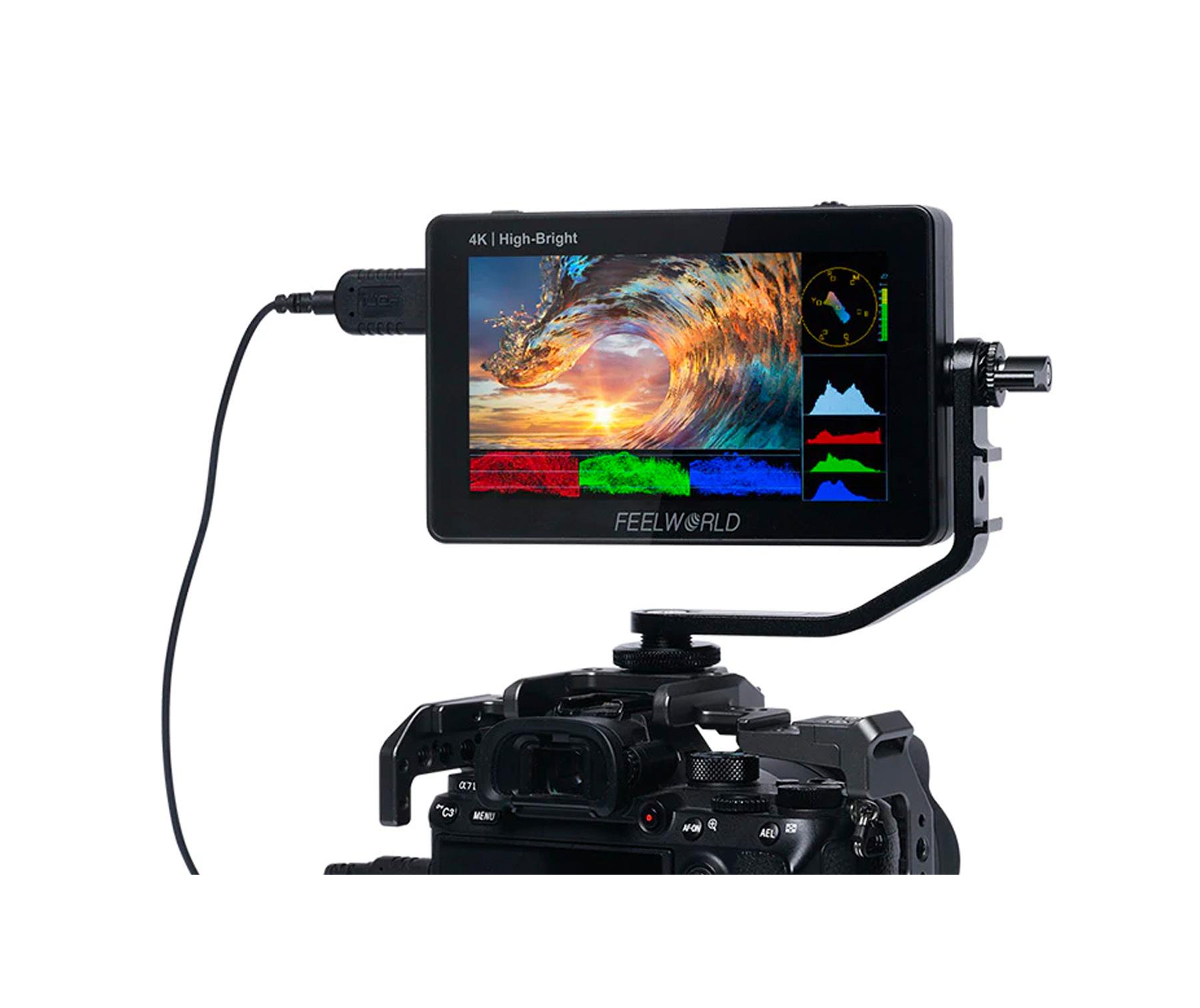

Convenient Mounting - Tilt Arm
The monitor will ship with a cold shoe-mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows F6 PLUSX to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
• There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, grab the monitor to rotate without loosening the screws.
Portable Sunshade, Easy Install
You also can use the sun-hood to resist strong light when outdoor shooting. It is easy to install and portable.
What's in the box?
- 1 x FeelWorld F6 Plus 5.5" 4K HDMI Monitor
- 1 x Micro-HDMI Cable
- 1 x Sunshade
- 1 x Tilt Arm
- Display Specifications
Model
F6 PLUSX
Screen Size
5.5" Touch Screen
Resolution
1920x1080 pixels
Pixel Pitch
0.069 (H) × 0.069 (V) mm
Aspect Ratio
16:9
Brightness
1600cd/m²
Contrast Ratio
1000:1
Backlight
LED
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
- Input
1 X HDMI
1 X Type-C
- Output
1 X HDMI
1 X DC Output
- Audio
3.5mm Stereo Headphone
- HDMI
Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
- General
Input Voltage
DC7~24V
Power Consumption
≤10W
Power Connector
DC
Working Temperature
-20°C~55°C
Storage Temperature
-30°C~65°C
Install Way
¼-20 thread points (top, bottom, right)
Unit Size
148Lx93Hx20D (mm)
Unit Weight
235g
Color Box Size
186L*124W*80H(mm)
Outer Carton Qty
10
Outer Carton Size
465*200*326 (mm)
Gross Weight
7.2kgs
