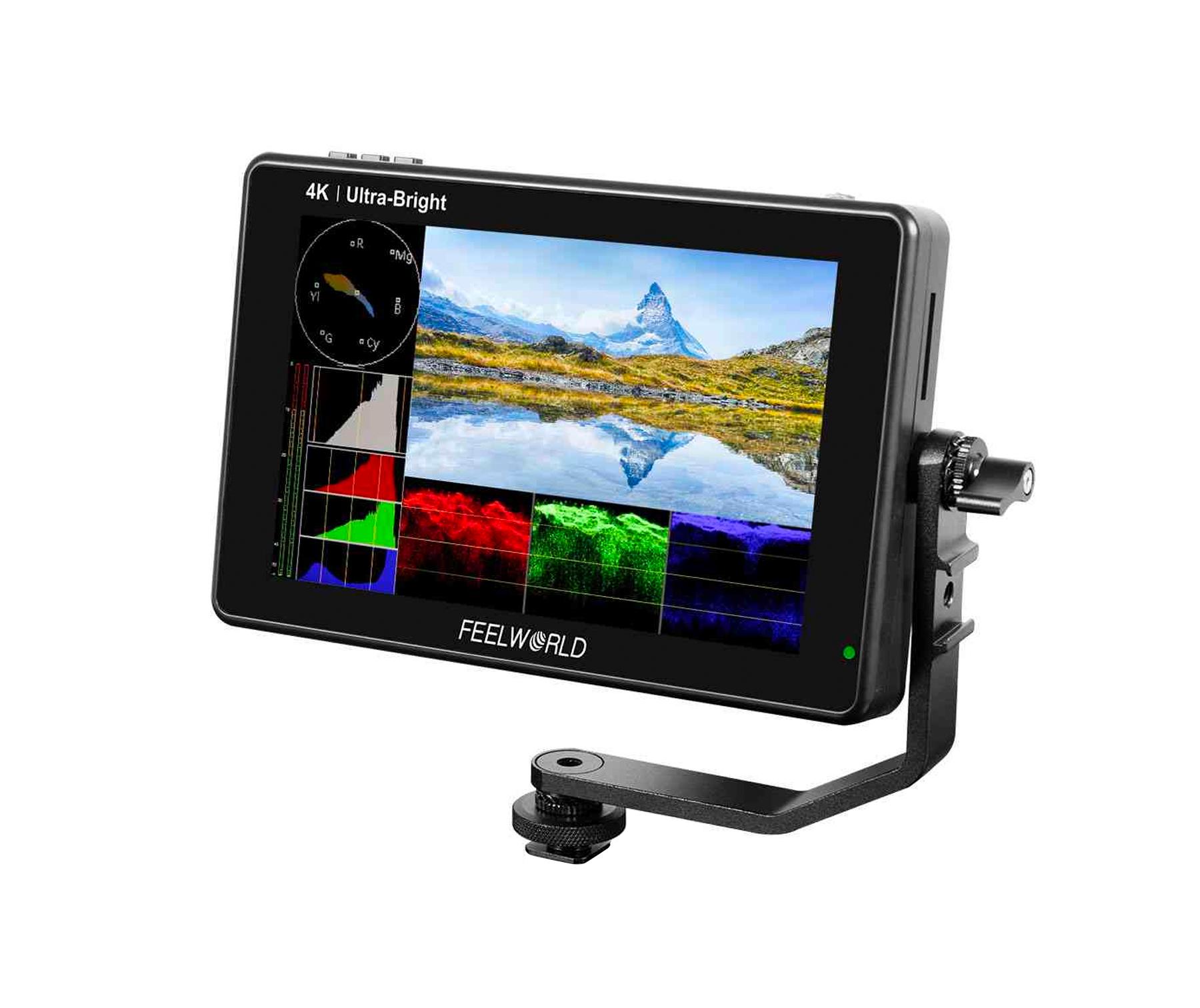

Feelworld LUT7 7" 4K HDMI Touchscreen Monitor
Product Highlights
- 7" 1920 x 1200 IPS LCD Monitor
- HDMI Input/Output
- 2200 cd/m² Brightness, Touchscreen
- Inputs SD, HD, and DCI 4K Video
- Dual L-Series/NP-F Battery Plate
- 1200:1 Contrast Ratio, 3D LUT Support
- 160° Viewing Angle
Related Products
True Color · Professional Color CalibrationUse Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
More Resolution, Less ReflectionThe FEELWORLD LUT7 monitor displaying your content at 323 pixels per inch (PPI), enables clear and precise field monitoring. The panel is made of optically bonded glass with an anti-reflective coating. But what really sets it apart is its light-emitting diode (LED) backlighting, which displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.
Large Monitor with Easy Touch Controls
The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. Plus you can load 3D LUTs!
Connect to Wireless Transmitter and Director MonitorTransmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting. Display live picture on multiple displays simultaneously.
Attach to Cameras, Equipment Carts or Hang It Anywhere
There are 3 standard-sized mounting points. Using the bottom 1⁄4 inch hole, you can securely attach it to the top of your camera as the ultimate viewfinder! The 1⁄4-inch holes on the left and right sides can be mounted on other equipment with magic arm, bracket, etc., for the entire crew to monitor the screen.
What's in the box?
- 1 x Feelworld LUT7 7" 4K HDMI Monitor
- 1 x Micro-HDMI to HDMI Cable
- 1 x Tilt Arm Mount
- Display Specifications
Screen Size:
7" IPS
Resolution
1920x1200 pixels
Pixel Pitch
0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio
16:10
Brightness
2200cd/m² (Light Sensor)
Contrast Ratio
1200:1
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
- Input Output
Input
1 X 4K HDMI
Output
1X 4K HDMI, DC Output ( Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor)
Audio
3.5mm Stereo Headphone
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
- General
Input Voltage:
DC7~24V
Consumption:
≤20W
Working Temperature:
-20°C~55°C
Storage Temperature:
-30°C~65°C
Mounting
1/4"-20 Thread Socket (Left, Right, Bottom)
Unit Size
190Lx126Hx27D (mm)
Battery Plate
Dual F970 Battery Plate
Compatible Battery
Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Because the FEELWORLD LUT7S monitor is ultra bright, we recommend using Sony F970 battery, two F970 batteries can use 4-5 hours.
(Note battery not included, need purchase separately)
