Viltrox DC-X2 6" HDMI Touchscreen Monitor with Cage
Product Highlights
- 2000 Nits brightness
- 6-inch FHD 1080P IPS display
- Peak Focus Accuracy
- Waveform and 3D LUT
- Intuitive touchscreen and programmable quick keys
- Versatile Connectivity and Durability
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.
DC-X 6" Touch Screen Pro Monitor
Precision and Clarity for the Modern Filmmaker
Vibrant Colors & Superior Performance
- Clear FHD 1080P Display
- Vibrant IPS Display for True Color
- 160° Ultra-Wide Viewing Angle
- High Contrast, Rich Detail
- Professional Color Gamut Coverage
- Smooth Visuals with 60Hz Refresh Rate
User-Friendly Design
Superior Brightness For Any Environment

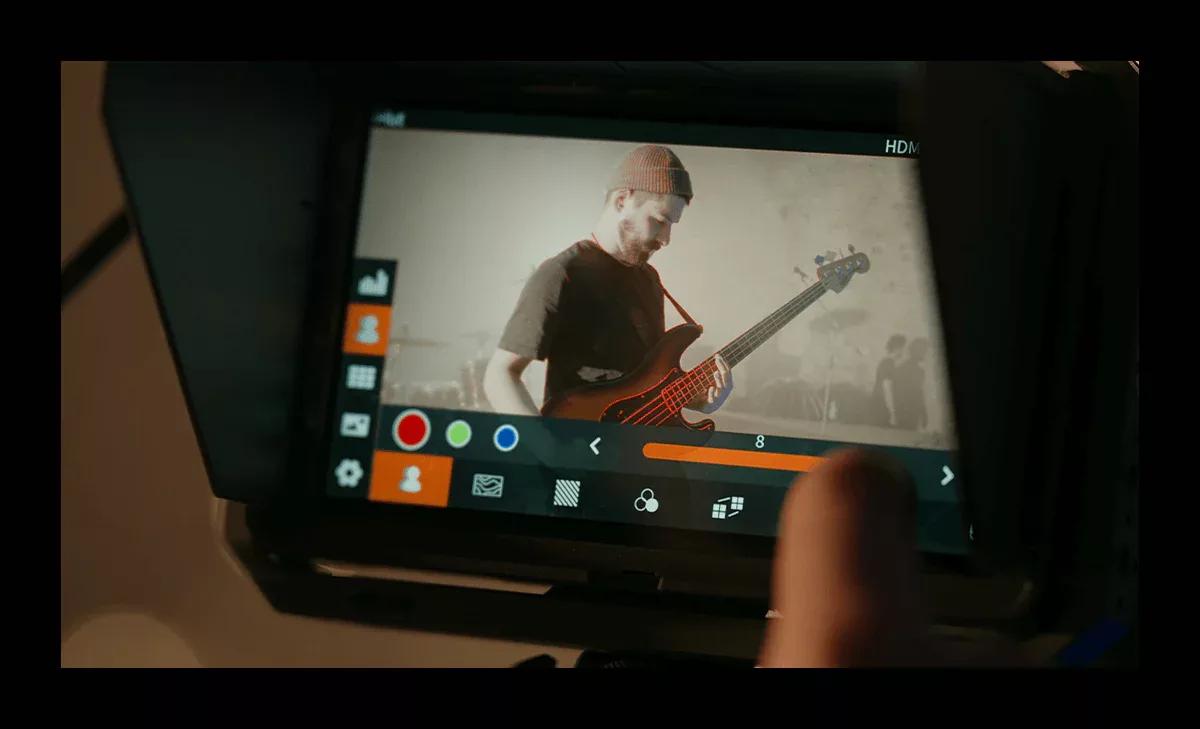

Touchscreen For Effortless Control
Customizable Shortcut Keys
Intelligent Thermal Management
Efficient Cooling System
Full aluminum body has multiple cooling designs, a built-in cooling fan, and an intelligent temperature control system that adjusts the fan speed based on the body temperature.
HD Monitoring
4k 30hz Signal Input and Loop Output
Wide Device Compatibility
SDI Compatibility (DC-X3)
Comprehensive Monitoring Tools
Professional Assistance
- Comprehensive Monitoring Tools for Precise Control
- Capture Every Detail with Precision
- Built-in Professional Grade Color Calibration
Creative Flexibility

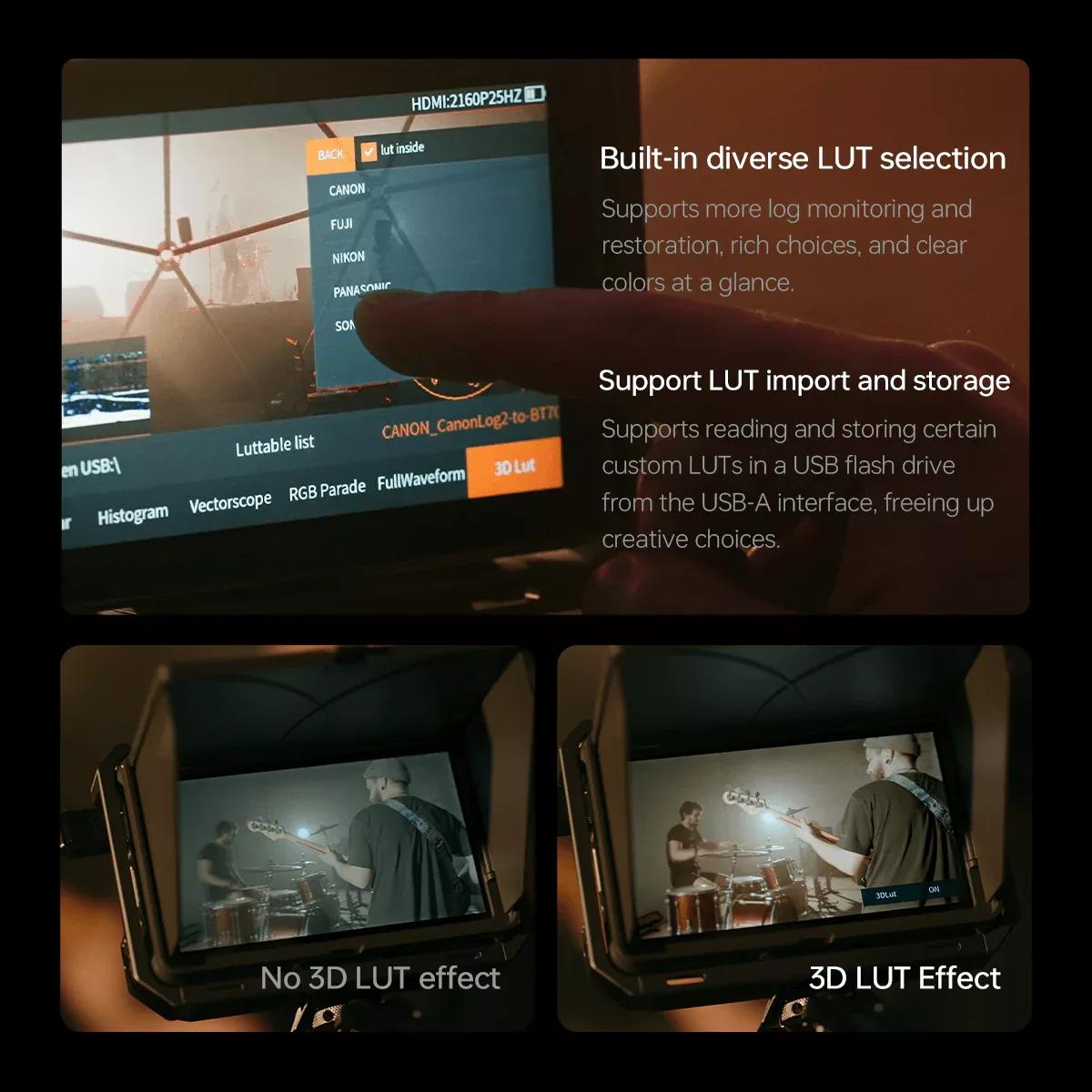

- 3D LUT Support for Real-time Color Grading
- Instantly Preview Different Color Styles
- Import Custom LUTs via USB
Achieve Perfect Shoot Every Time
- Capture Key Points with Peak Focus
- Improve Overall Shooting Quality
- Enhance Image Sharpness
Optimize Exposure and Contrast
- Analyze Brightness Distribution
- Detect and Correct Overexposure
- Improve Image Detail
Aluminum Alloy Compact Body
- Lightweight and Sturdy Design
- Less than 350g Compact and Easy to Carry
- Perfect for On-the-Go Shooting
- Aluminum Alloy Excellence Shell
Multiple Power Supply Options
- NP-F Lithium Batteries, DC 12-18V, and Type-C 9V/3A inputs
- Extended Battery Life for Long Shoots
- Stay powered up in a studio, on location, or outdoors

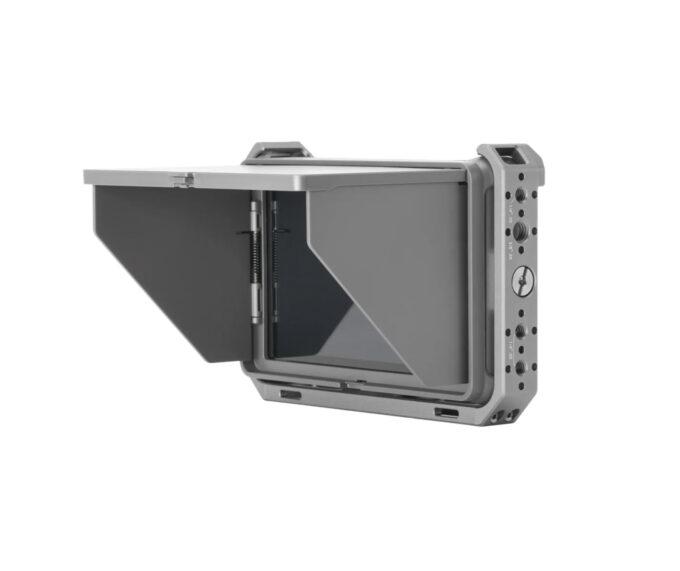

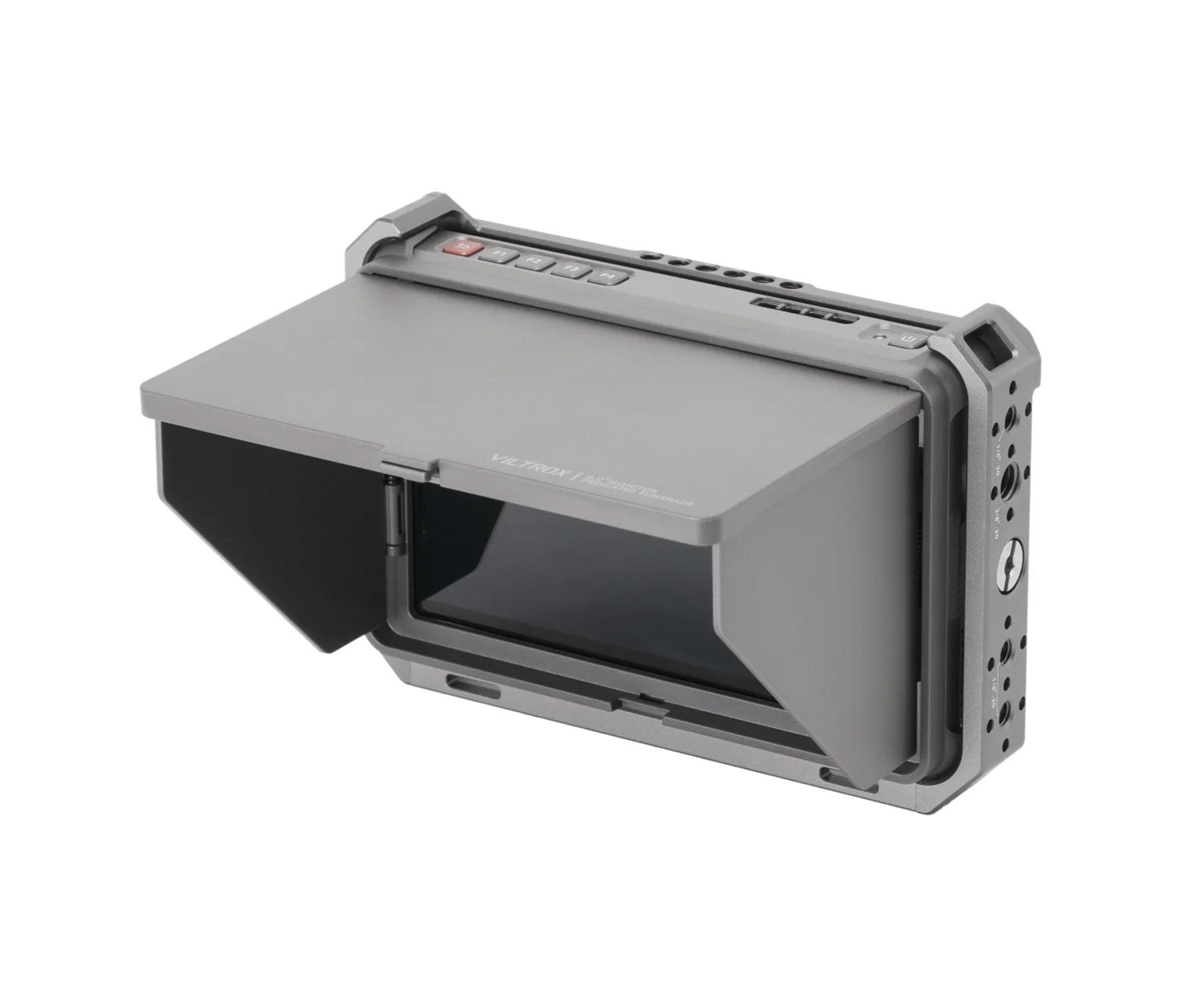

Quick-release Sunhood
Features a detachable sunhood design for quick setup and storage. Effectively blocks light sources during outdoor shooting, ensuring optimal viewing and protecting the screen from scratches.
*Aluminum alloy cage sold separately.
DC-X2 & DC-X3 Product Diagram
DC-X2
DC-X3
- Return/Menu Button
- Shortcut Keys
- Screen
- Fan Exhaust Vent
- Indicator Light
- Power Button
- HDMI Input
- HDMI Output
- Headphone Jack
- Cooling Air Inlet
- 1/4 Inch Screw Hole
- Cooling Air Inlet
- DC Jack
- Type-C Port
- Cooling Air Inlet
- 1/4 Inch Screw Hole
- Cooling Air Inlet
- USB Port
- Battery Release Button
- Battery Compartment
- Return/Menu Button
- Shortcut Keys
- Screen
- Fan Exhaust Vent
- Indicator Light
- Power Button
- HDMI Input
- HDMI Output
- Headphone Jack
- Cooling Air Inlet
- 1/4 Inch Screw Hole
- Cooling Air Inlet
- DC Jack
- Type-C Port
- Cooling Air Inlet
- 1/4 Inch Screw Hole
- Cooling Air Inlet
- USB Port
- Battery Release Button
- Battery Compartment
- SDI Input
- SDI Output

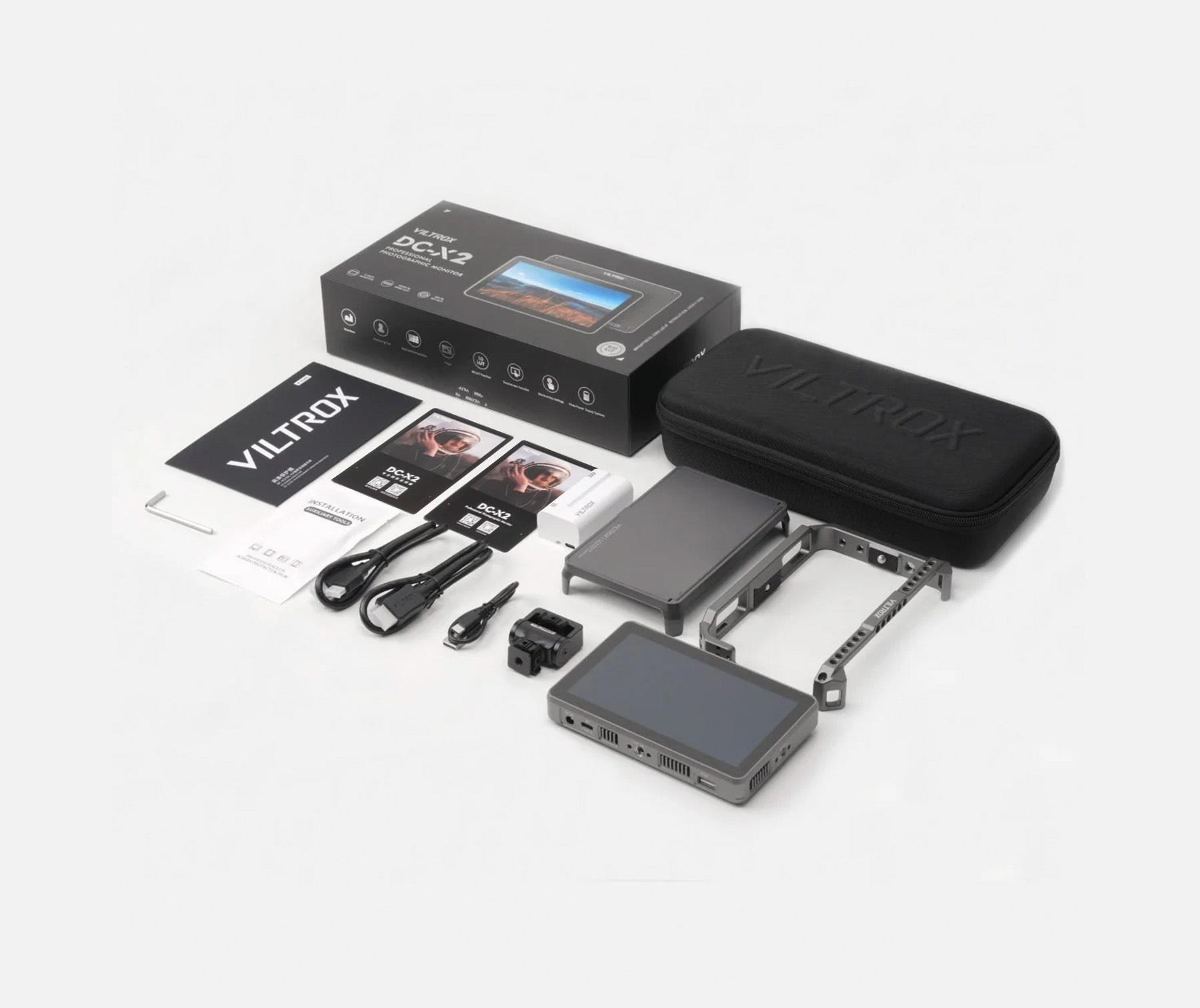

What's in the box?
- 1 x Viltrox DC-X2 monitor
- 1 x Cage
- 1 x Hard-shell carrying case
- 1 x Custom ball head
- 1 x NP-F550 battery
- 1 x Quick-release sunhood
- 1 x Custom screen protector
- 1 x HDMI cable
- 1 x Mini-HDMI cable
- 1 x USB-C power cable
- Screen
6-inch IPS Touchscreen
- Resolution
1920x1080
- Ratio
16:9
- Screen Contrast Ratio
1000:1
- Refresh Rate
60Hz
- Viewing Angle
160°
- Pixel Density
360PPI
- Screen Color Gamut
100%±3% SRGB/Rec.709
- Color Depth
8 bit
- Input
DC-X3
HDMI, SDI
DC-X2
HDMI
- Output
DC-X3
HDMI, SDI
DC-X2
HDMI
- Power Input
DC 12-18V/2A, Type-C>9V/3A
- USB
Supports USB interface upgrade, 3DLut file import
- Dimensions
DC-X3
155.4 x98.4 x 30mm
DC-X2
155.4 x 98.4 x 26.8mm
- Weight
DC-X3
350g
DC-X2
324.5g
- Audio Output
3.5mm headphone jack
- Battery
Li-battery NP-F550/F570/F750/F770/F960/F970
- Storage Temperature
0℃~75℃
