Zoom H1 XLR Handy Recorder
Product Highlights
- 2-track 32-bit float recorder with Dual A/D Converters
- Clip-free recording with no need to set gain
- Records up to 96kHZ sample rate
- Voice Guidance accessibility for the visually impaired
- 2 XLR/TRS combo inputs with locking connector
- Hardware MIC/LINE input level select switch for each input
- Stereo ⅛" Mic/Line In mini phone jack
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- ¼ | 20 Tripod mount
- Real time waveform display on OLED display
- Built-in mixer to adjust each track’s audio input level
- Built-in speaker for quick reference playback and voice guidance accessibility
- 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
- Use as an interface and record to SD card simultaneously
- Records directly to microSDHC and microSDXC cards up to 1 TB
- 10 hours of battery life on AA battery (2x) or USB-C Bus Power
The Record-Everything Recorder
The H1 XLR Handy Recorder
Go Anywhere,
Record Anything
The H1 XLR is the recorder for creators who know no limits. Capture audio for video, direct feeds from mixers, song ideas and more.
Input Flexibility
Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more.
The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources.
Stereo or Mono
The H1 XLR can record both stereo and mono files depending on your application.
Applications
Attention Musicians

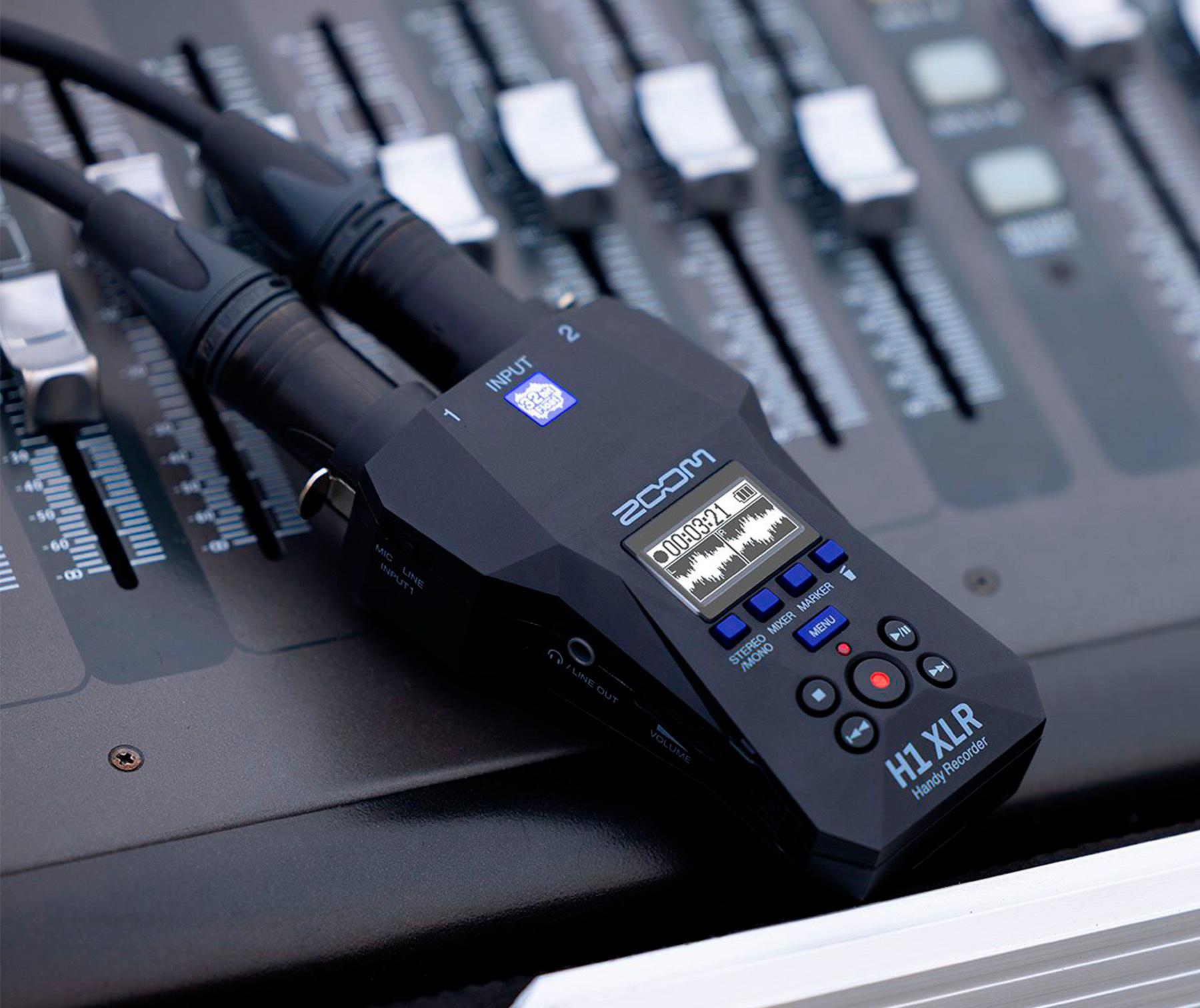

Capture live band performances or DJ sets by taking a stereo feed from your mixing board.
Perfect On Camera
The H1 XLR is perfect for mounting on your rig to record great audio from shotgun or wireless mics.
The Sound Designer’s Companion
With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.
Watson Wu | Sound Designer | Baby Driver, Call of Duty: Modern Warfare, Transformers, Madden
Podcast Anywhere
With the H1 XLR and two of your favorite mics it’s easy to record podcasts anywhere you go.
Accessibility
The H1 XLR is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*
What's in the box?
- 1 x Zoom H1 XLR Handy Recorder
- Input
MIC/LINE (mono)
Connectors
2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain
Adjustment unnecessary (dual A/D converter circuits used)
Input impedance
MIC: 2.7 kΩ or more
LINE: 1 kΩ or more
Maximum input level
MIC: +4 dBu
LINE: +24 dBu
Phantom power
+48 V
Channel total
10 mA or less
Equivalent input noise
MIC: –122 dBu or less (IHF-A) at 150Ω input
LINE: –100 dBu or less (IHF-A) at 600Ω input
MIC/LINE IN jack
Connector
Stereo mini jack
Input impedance
2 kΩ
Plug-in power
2.5 V
- Output
PHONE / LINE OUT jack
Connector
Stereo mini jack
Maximum output level
20 mW + 20 mW (when 32 Ω load)
Output impedance
10 Ω or less
Built-in speaker
Type
20 mm × 30 mm elliptical dynamic speaker
Effective maximum output
250mW
- Recorder
Recording format
WAV
44.1, 48 or 96 kHz / 32-bit float
Stereo / Mono
BWF and iXML formats supported
Recording media
4 – 32GB cards compatible with the microSDHC specification
64GB – 1TB cards compatible with the microSDXC specification
- Display
OLED
128 x 64
- USB
Connector
USB Type-C
• Use a USB cable that supports data transfer.
Audio interface
USB Audio Class 1.0
Input and output channels
2 in / 2 out (Stereo)
Sampling frequencies
44.1, 48 kHz
Bit depths
16-bit, 32-bit float
File transfer
USB 2.0 High Speed
- Power
2 AA batteries
Alkaline, Lithium, or Rechargeable NiMH
AC adapter
ZOOM AD-17: DC 5 V/1 A
• USB bus power is supported.
- Power Consumption
2.5 W maximum
- Dimensions
62.1 mm (W) × 107 mm (D) × 39.3 mm (H)
- Weight
164 g
