Zoom EXH-6e Dual XLR/TRS Input Capsule
Product Highlights
- For H6essential
- Two XLR-1/4" TRS Locking Inputs
- Accepts Mic or Line Inputs
- Stereo 3.5mm Mic/Line Input for Lav Mics
- Individually Selectable Phantom Power
- Plug-In Power for Lav Mics
- USB-C Port for External Power
- Supports 32-Bit Float Recording
EXH-6e
Dual XLR/TRS Input Capsule

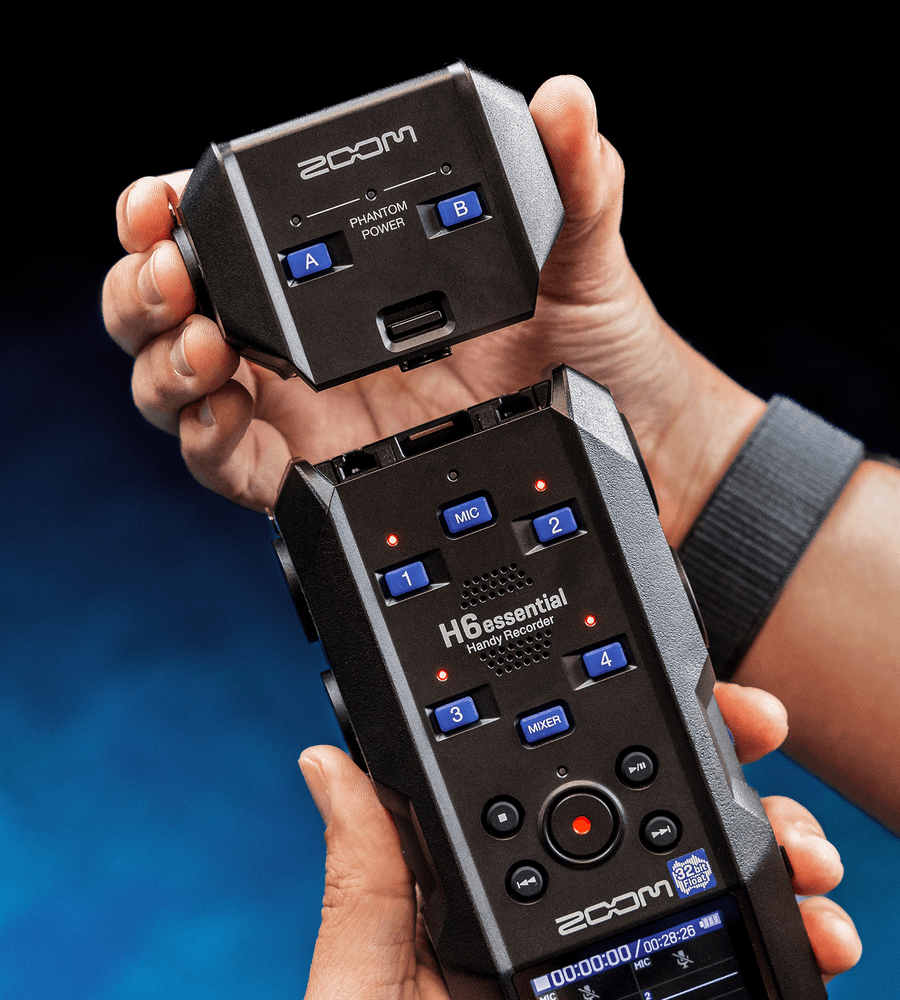

Expand Your Recording
The EXH-6e features 2 XLR/TRS inputs and a 3.5mm stereo mic/line input for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.
Input Types
The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.
Phantom Power
The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.
What's in the box?
- 1 x Zoom EXH-6e Dual XLR/TRS Input Capsule
- Compatibility
H6essential, H5studio
- Input
Connectors
XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain
Adjustment unnecessary
Input impedance
3.8 kΩ or higher (MIC) / 39 kΩ or higher (LINE)
Maximum input level
−4 dBu (MIC) / +16 dBu (LINE)
Phantom power
+48 V, 10 mA maximum per channel
Equivalent input noise
−120 dBu or less (IHF-A) at 150Ω input
- Mic/Line In Jack
Connector
Stereo mini jack
Input gain
Adjustment unnecessary
Input impedance
2 kΩ or higher
- Dimensions
78.1 mm (W) × 56.7 mm (D) × 43.9 mm (H)
- Weight
96 g
