Sennheiser EW 512P G4-BW Wireless Microphone System
Product Highlights
-
Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
-
Professional sound and excellent construction quality
-
Easy to use and fast setup time
-
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
-
Up to 88 MHz bandwidth, up to 32 channels
-
Range: up to 100 meters / 330 feet
-
Increased RF output power (10/30/50 mW)
-
Up to 8 hours of operation time
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.
The perfect solution for film-makers on large sets, operating up to 32 channels in parallel. The amazing bandwidth of up to 88 MHz and the increased RF output power ensure highest safety, no matter the conditions.
What's in the box?
- 1 x EK 500 G4 camera receiver
- 1 x SK 500 G4 bodypack transmitter
- 1 x MKE 2 clip-on microphone
- 4 x AA batteries
- 1 x CL 1 3.5 mm jack cable
- 1 x CL 500 XLR to 3.5 mm jack adapter cable
- 1 x CA 2 camera adapter
- 1 x fur windscreen for MKE 2
- 1 x quick guide
- 1 x safety guide
- 1 x manufacturer declaration sheet
- Ek 500 G4
Frequency range
Bw: 626 - 698 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 130 g
Audio output
3.5 mm jack socket: +17 dBu (mono, balanced)
Signal-to-noise ratio
Line: ≥ 110 dBA, Phones: approx. 90 dBA
Switching bandwidth
up to 88 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection
Typically ≥ 65 dB
Intermodulation attenuation
Typically ≥ 65 dB
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity
< 1.6 μV for 52 dBA eff S/N
Squelch
low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range
-10 °C to +55 °C
Receiver Principle
Adaptive diversity
Blocking
≥ 70 dB

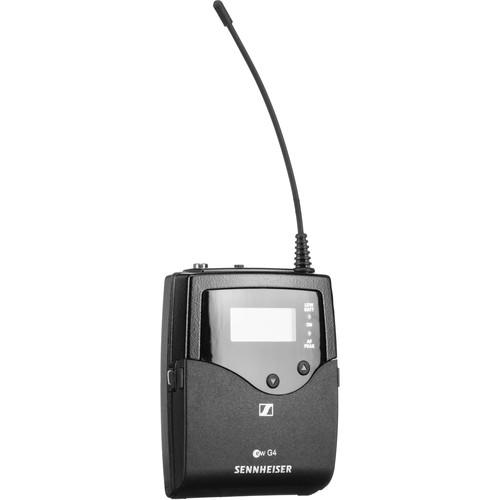

- Sk 500 G4
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 160 g
Signal-to-noise ratio
≥ 115 dBA
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 88 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Input impedance
40 kΩ, unbalanced / 1 MΩ
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response
Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range
-10 °C to +55 °C
Frequency stability
≤ ±15 ppm
- Mke 2
Connector
3.5 mm jack
Frequency response
20 to 20.000 Hz ± 3 dB
Max. sound pressure level
142 dB
Cable length
approx. 1.60 m
Transducer principle
pre-polarized condensor microphone
Pick-up pattern
omni-directional
Sensitivity in free field, no load (1kHz)
5 mV/Pa, ± 3 dB
Equivalent noise level
26 dB
Equivalent noise level weighted as per CCIR 468-3
39 dB
