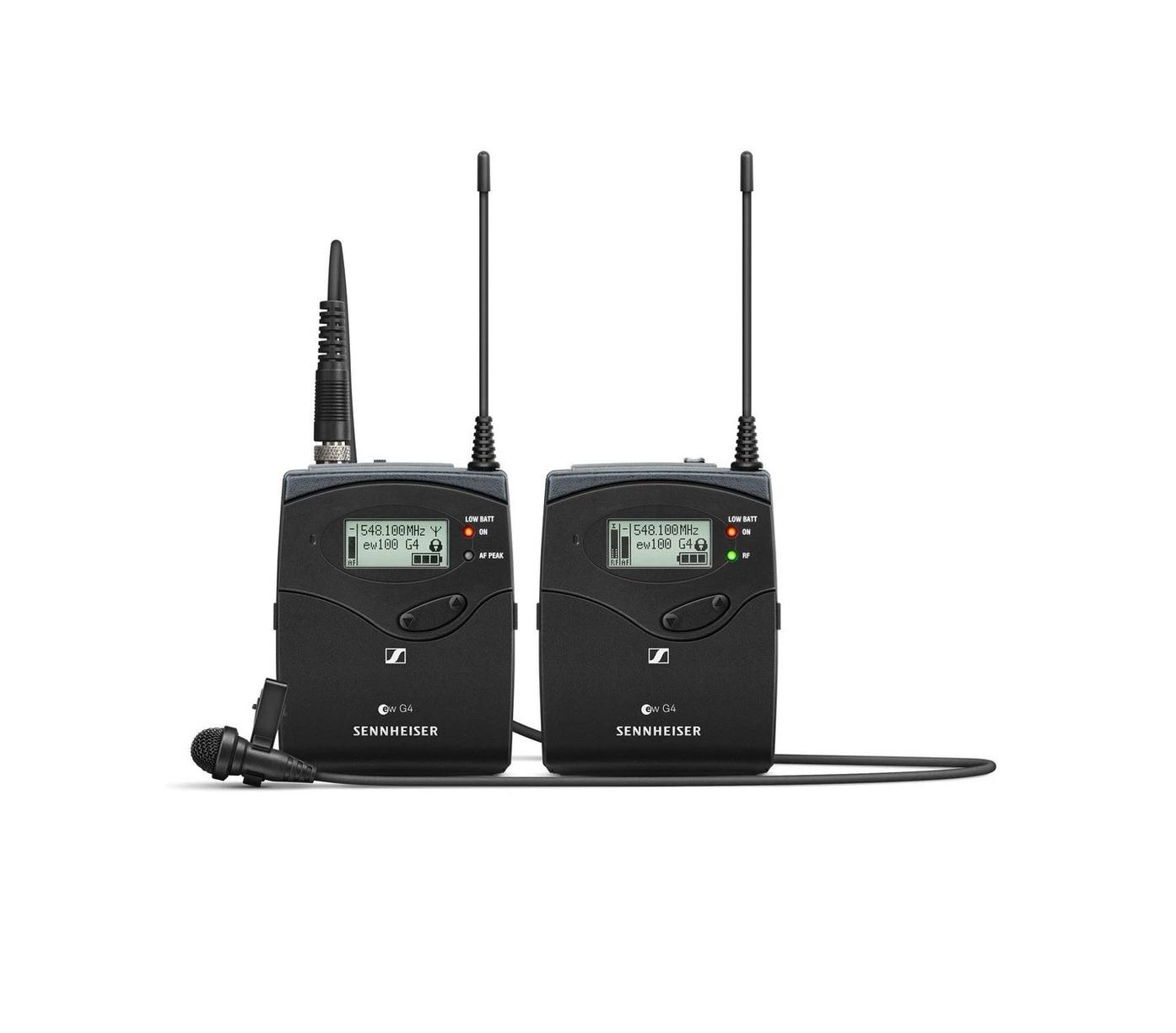

Sennheiser EW 112P G4-B10 Wireless Microphone System
Product Highlights
- Rugged all-in-one wireless system with high flexibility for broadcast quality sound
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.
A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
What's in the box?
- 1 x EK 100 G4 camera receiver
- 1 x SK 100 G4 bodypack transmitter
- 1 x ME 2 clip-on microphone (ew 112 P variants only)
- 4 x AA batteries
- 1 x CA 2 camera adapter
- 1 x CL 1 3.5 mm jack cable
- 1 x CL 100 XLR to 3.5 mm jack adapter cable
- 1 x Quick guide
- 1 x Safety guide
- 1 x Manufacturer declaration sheet
- Ek 100 G4
Dimensions (EK 100 G4)
Approx. 82 x 64 x 24 mmCompander
(EK 100 G4)Sennheiser HDXTHD, total harmonic distortion
(EK 100 G4)≤ 0.9 %Weight (EK 100 G4)(incl. batteries)
approx. 160 gAudio output (EK 100 G4)
3.5 mm jack socket: +12 dBu (mono, unbalanced)Signal-to-noise ratio (EK 100 G4)
≥ 110 dBASwitching bandwidth (EK 100 G4)
up to 42 MHzPeak deviation (EK 100 G4)
±48 kHzNominal deviation (EK 100 G4)
±24 kHzOperating time (EK 100 G4)
Typically 8 hModulation (EK 100 G4)
Wideband FMPower supply (EK 100 G4)
2 AA batteries, 1.5 V or BA 2015 accupackCurrent consumption (EK 100 G4)
at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 µAAdjacent channel rejection (EK 100 G4)
≥ 65 dBIntermodulation attenuation (EK 100 G4)
≥ 65 dBPowering (EK 100 G4)
3 V battery / 2.4 V rechargeable batteryReceiving frequency (EK 100 G4)
Max. 1680 receiving frequencies, adjustable in
25 kHz steps 20 frequency banks, each with up
to 12 factory-preset channels, no
intermodulation 1 frequency bank with up to
12 programmable channelsRF sensitivity (EK 100 G4)
< 1.6 μV for 52 dBA eff S/NSquelch (EK 100 G4)
low: 5 dBµV middle: 15 dBµV high: 25 dBμVTemperature Range (EK 100 G4)
-10 °C to +55 °CReceiver Principle (EK 100 G4)
Adaptive diversityBlocking (EK 100 G4)
≥ 70 dB
- Sk 100 G4
Dimensions (SK 100 G4)
Approx. 82 x 64 x 24 mmCompander (SK 100 G4)
Sennheiser HDXTHD, total harmonic distortion (SK 100 G4)
≤ 0.9 %Weight (SK 100 G4)
(incl. batteries) approx. 160 gSignal-to-noise ratio (SK 100 G4)
≥ 110 dBARF output power (SK 100 G4)
Max. 30 mWSwitching bandwidth (SK 100 G4)
up to 42 MHzPeak deviation (SK 100 G4)
±48 kHzNominal deviation (SK 100 G4)
±24 kHzOperating time (SK 100 G4)
Typically 8 hModulation (SK 100 G4)
Wideband FMPower supply (SK 100 G4)
2 AA batteries, 1.5 V or BA 2015 accupackCurrent consumption (SK 100 G4)
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µAInput impedance (SK 100 G4)
40 kΩ, unbalanced / 1 MΩMax. Input voltage (SK 100 G4)
3 VeffPowering (SK 100 G4)
3 V battery / 2.4 V rechargeable batteryTransmission frequency (SK 100 G4)
Max. 1680 transmitting frequencies,
adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels,
no intermodulation 1 frequency bank with
up to 12 programmable channelsAF frequency response (SK 100 G4)
Mic: 80 – 18,000 Hz Line: 25 – 18,000 HzTemperature Range (SK 100 G4)
-10 °C to +55 °CFrequency stability (SK 100 G4)
≤ ±15 ppm
- Me 2
Connector (ME 2)
3.5 mm jackFrequency response (ME 2)
50 to 18,000 Hz (ME 2-II)Max. sound pressure level (ME 2)
130 dBCable length (ME 2)
approx. 1.60 mTransducer principle (ME 2)
pre-polarized condensor microphonePick-up pattern (ME 2)
omni-directionalSensitivity in free field, no load (1kHz) (ME 2)
20 mV/PaEquivalent noise level (ME 2)
36 dB
- Warranty
- 1 Year
