Nanlite Pavoslim 60B KIT-QR with Quick Release Softbox & Clamp
Product Highlights
- Metal housing. Efficient heat dissipation
- Slim and lightweight yet tough
- Rapid set-up
- Wireless control
PavoSlim 60B / 120B
Slim yet Rugged, Compact yet Bright
Key Features
Durable Metal Housing
Slim and Lightweight
With the metal housing, the PavoSlim 60B/120B proves that slimness and ruggedness are not contradictory. Even after being equipped with a complete set of diffusers and accessories for installation, it is still lighter and thinner compared to the traditional light mats. This makes it necessary no matter in small studios, low-ceiling locations or film and television sets with strict requirements.
72W/150W
Rated Power
0.91kg/1.65kg
Weight
1.86cm
Thickness
Efficient Design Maximum Output
PavoSlim 60B
8,156 lux@1m
Light only / 5600K
PavoSlim 120B
17,620 lux@1m
Light only / 5600K
The Nanlite team has developed a dedicated optical system for the individual chip of PavoSlim.
Combining efficient heat dissipation and excellent optical design, the PavoSlim achieves 4 times output comparing to the average output of similar products.
Rapid Deployment
Every element of the PavoSlim 60B/120B is designed for rapid deployment since every minute counts on set.
Even the accessories are designed with the same philosophy for easy and rapid setup, enabling creators to effortlessly complete installation within one minute.
The back of the fixture has multiple sockets for installation, meeting flexible needs in various situations.
The control unit is designed with a quick-release plate, which is compatible with the quick-release clamp (Optional) that is also used for Forza II series fixtures (suitable for light stands and trusses). The control unit can also be hung on the light stand by its strap.
Universal Holder
Strap
Baby Pin Holder
(Optional)

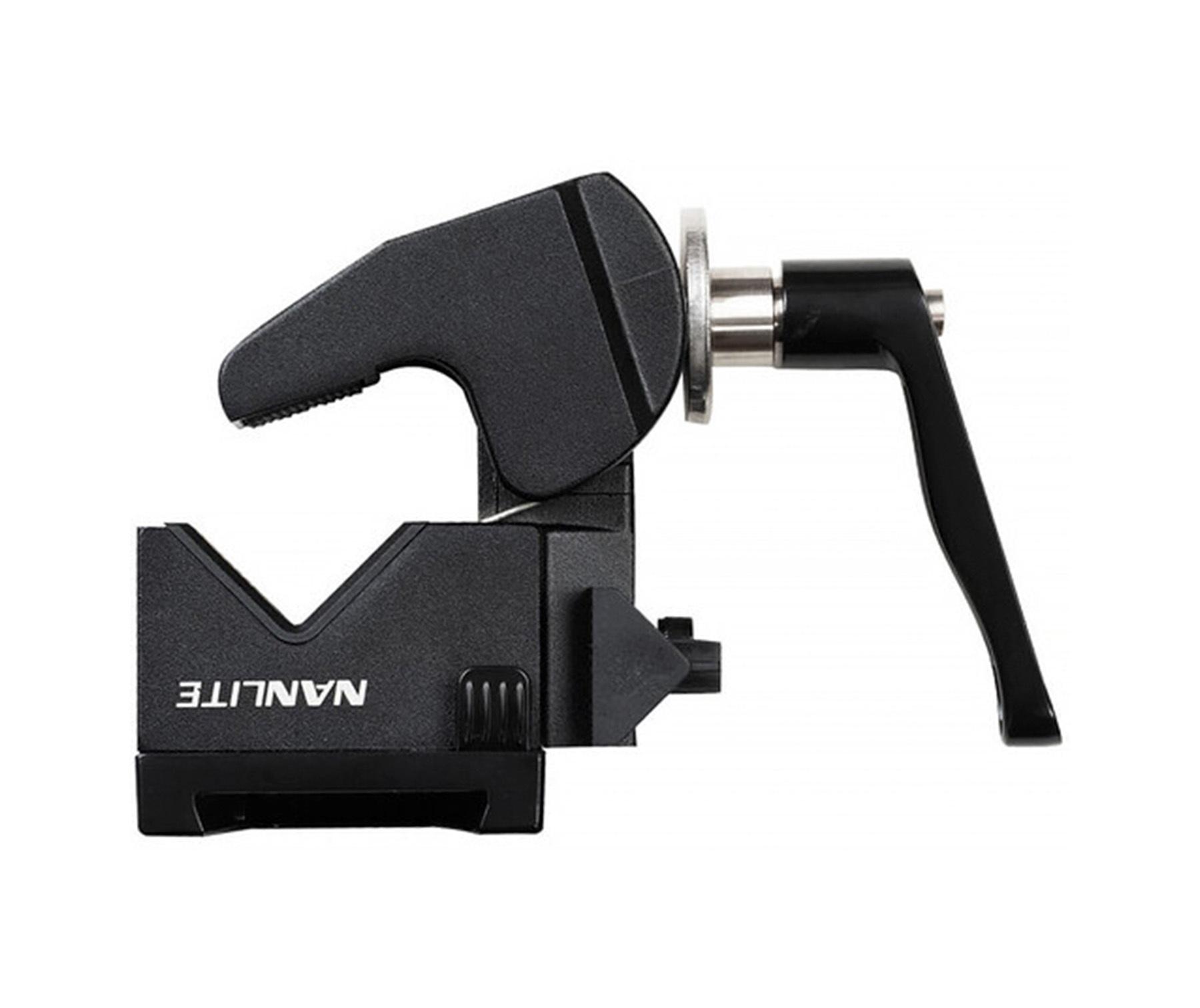

Quick Release Clamp
(Optional)
Multiple Sizes for Different Needs
To meet the requirements for different locations and scenes, the PavoSlim B Series is available in 1×1 (PavoSlim 60B) and 2×1 (PavoSlim 120B) size options.
*The external dimension of PavoSlim 60B is 30cm×30cm | PavoSlim 120B is 60cm×30cm.
Various Modes
* PavoSlim 120B data
Professional Control Options

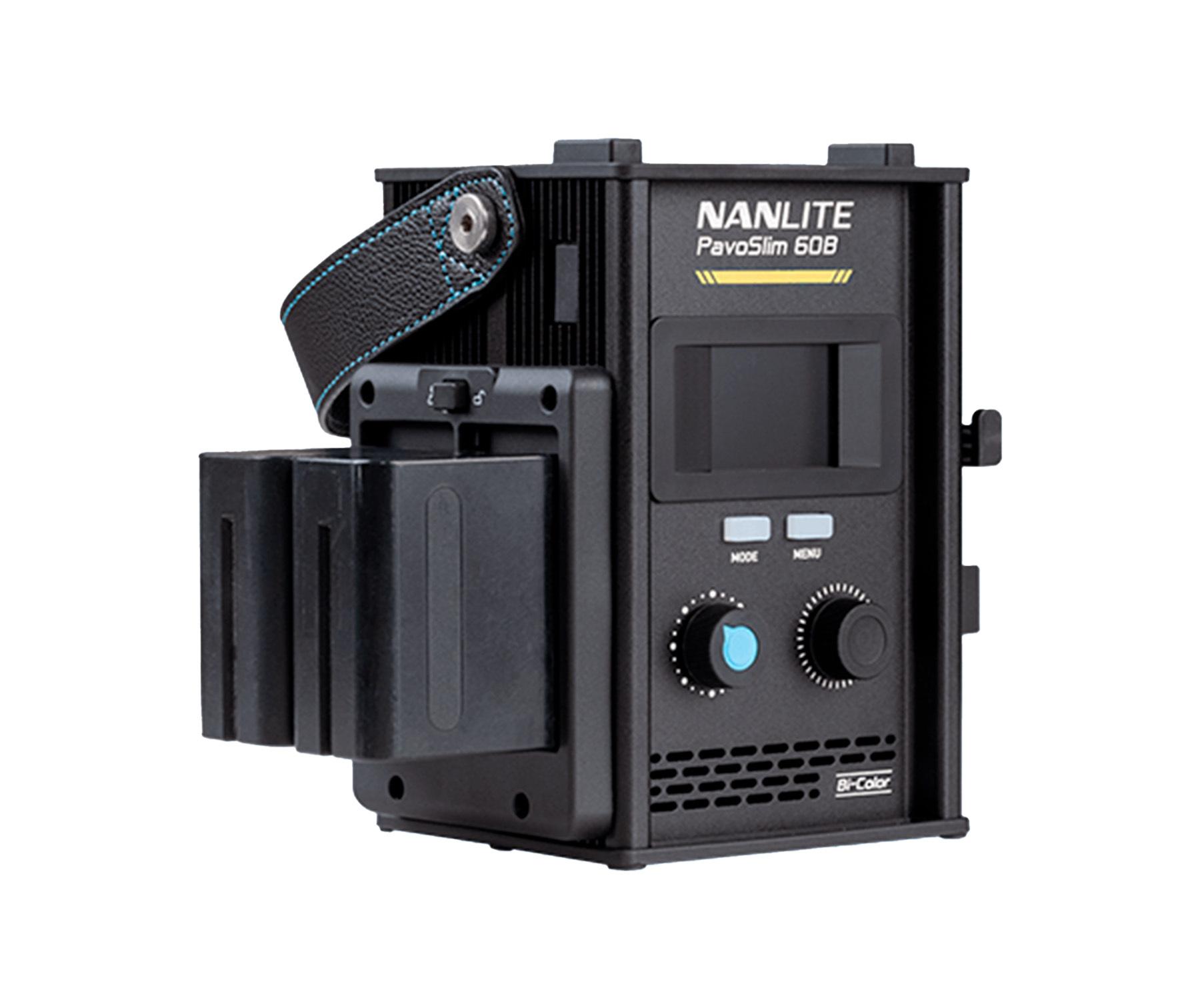

The PavoSlim 60B/120B can be controlled on the included power control unit. The design of two buttons, two knobs, and the two-inch screen makes the operation straightforward.
With built-in 2.4G and Bluetooth modules, the PavoSlim can be easily connected to the Nanlink App. This not only helps users easily achieve wireless intelligent control for lighting in small and medium spaces like studios, but also make it possible to integrate with point-source and tube lights from Nanlite
to create diverse and complementary lighting solutions for scenes.
With built-in 2.4G and Bluetooth modules, the PavoSlim can be easily connected to the Nanlink App. This not only helps users easily achieve wireless intelligent control for lighting in small and medium spaces like studios, but also make it possible to integrate with point-source and tube lights from Nanlite to create diverse and complementary lighting solutions for scenes.
In addition, through the stable connection and control via wired DMX/RDM, PavoSlim can be applied in the film and TV standard control system, jointly controlled with other lighting fixtures in the same DMX network, making implementation of lighting effects simpler and more efficient.
Multiple Power Options, Deploy Anywhere
The PavoSlim 60B/120B provides multiple power supply methods: PavoSlim 60B can be powered by AC power, V-mount batteries and NP-F batteries, while PavoSlim 120B can be powered by AC power, DC power, and V-mount batteries. All power supply methods support full power output, making it excellent for both indoor and outdoor scenarios.
Besides, the PavoSlim 60B/120B supports hot swapping among different power supply modes, allowing for ongoing shooting without interrupting operations.
Multiple Accessories
Magnetic Base Adapter with 1/4"-20 Thread Set
Each corner of the PavoSlim is built with one 1/4"-20 mount, which can be paired with the magnetic base adapter with a 1/4"-20 thread set, making installation faster and easier.
Extension cable
The fixture body of PavoSlim 60B/120B comes with a 0.4M DC connection cable, connected with the control unit through a 2.6M DC connection cable, and it can also be connected with another 2.6M connection cable as an extension.

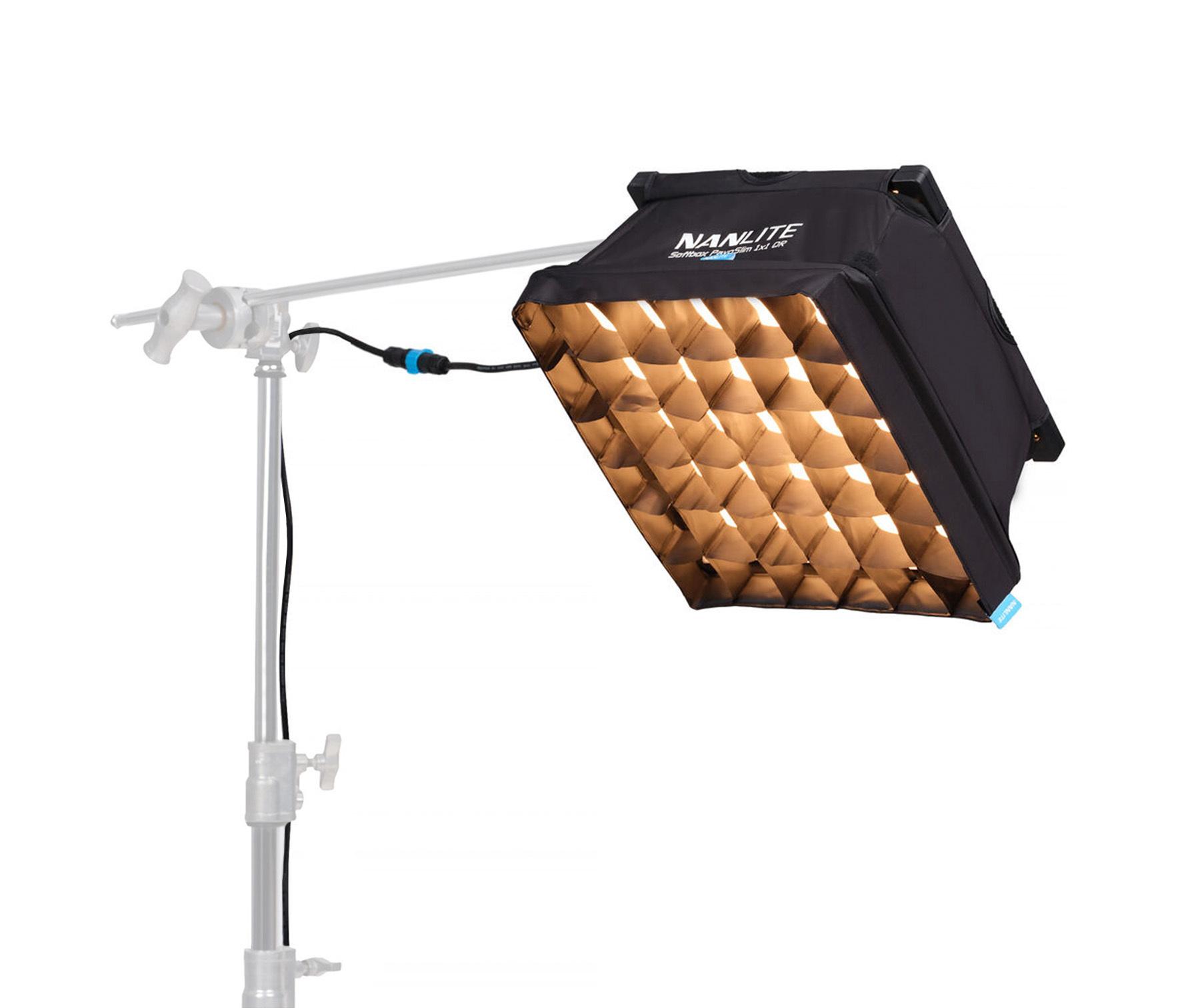

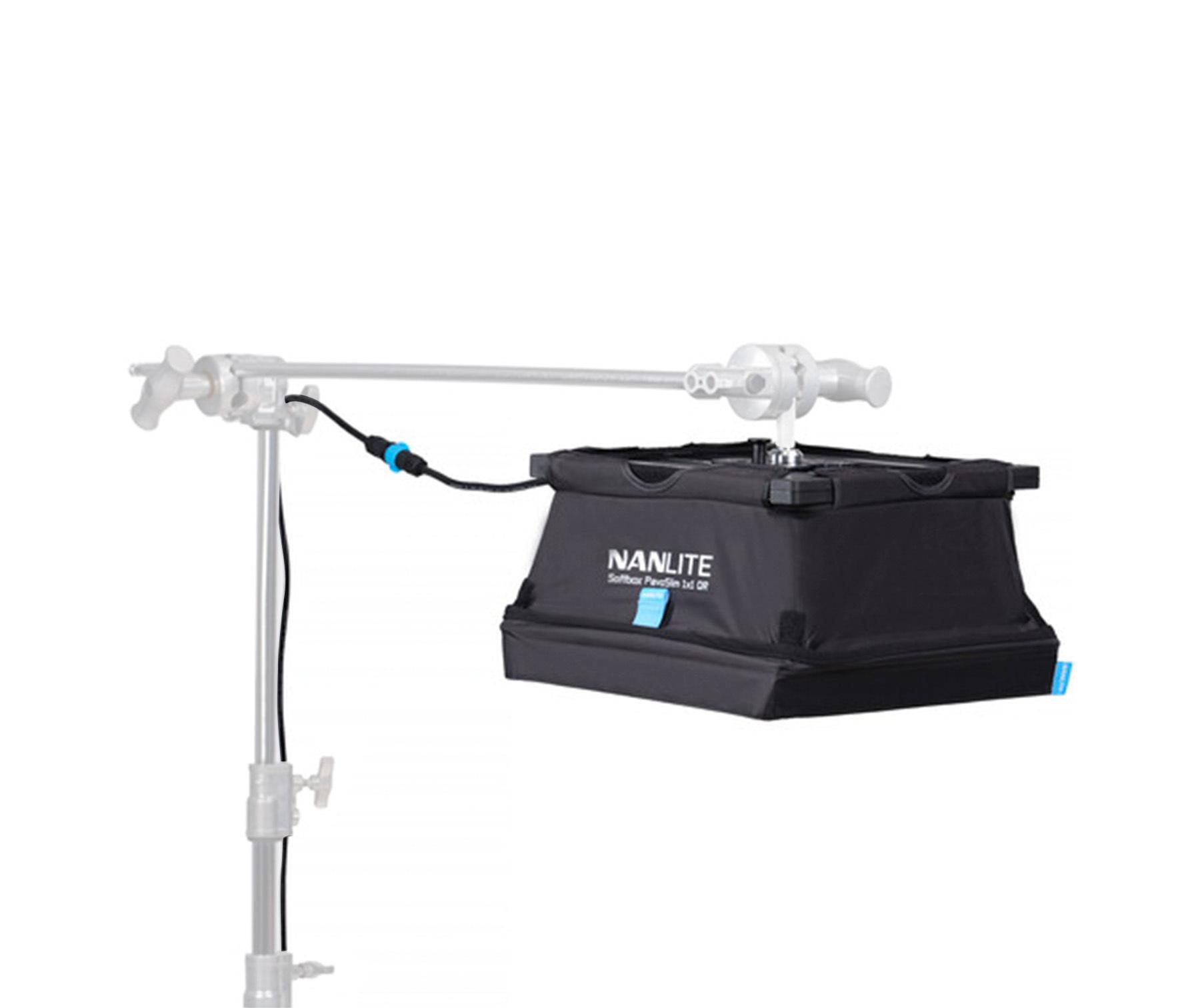

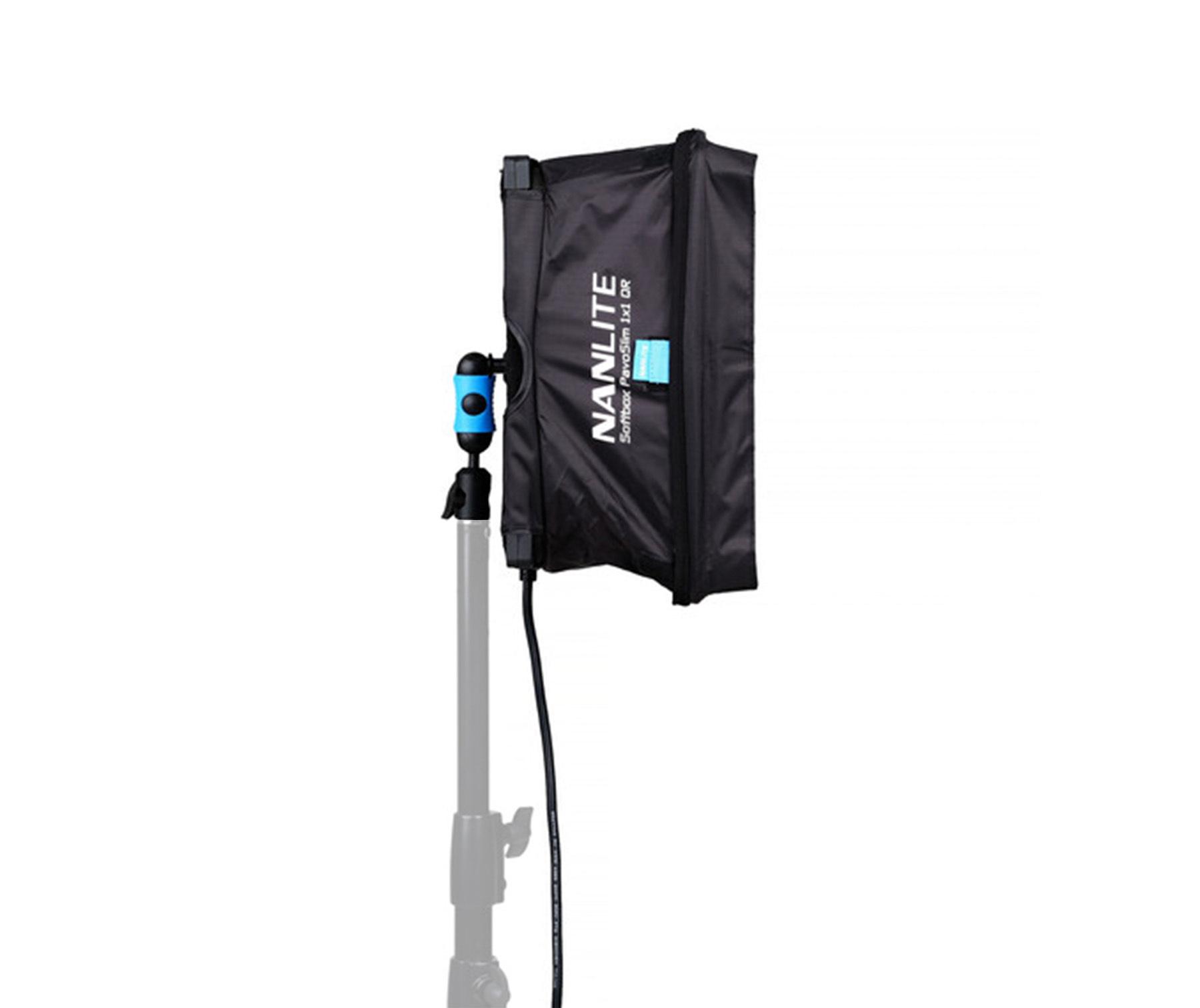

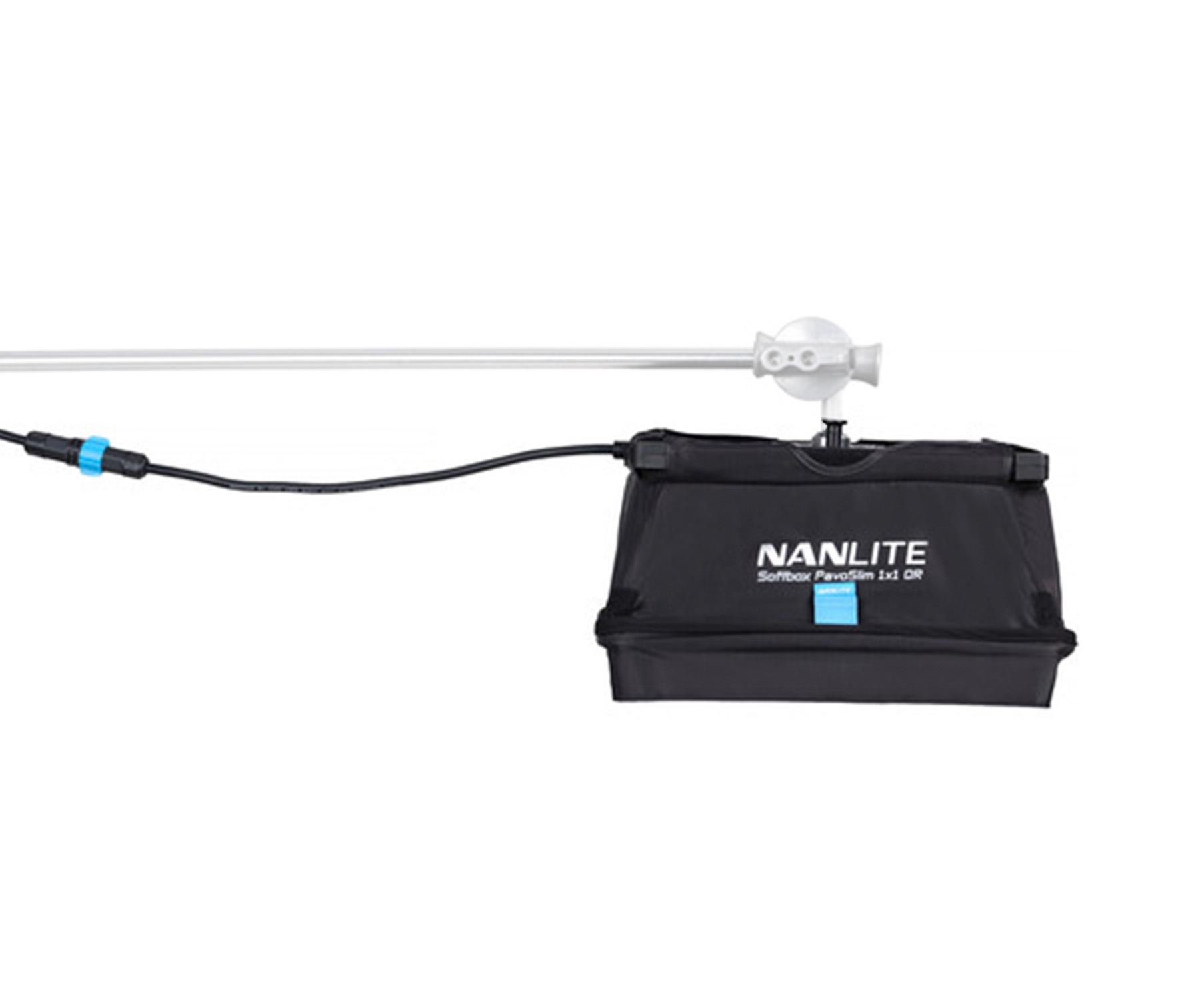

Softboxes
Two types of softboxes are available for PavoSlim 60B/120B: foldable and compressible.
Dual-Panel Coupler Kit

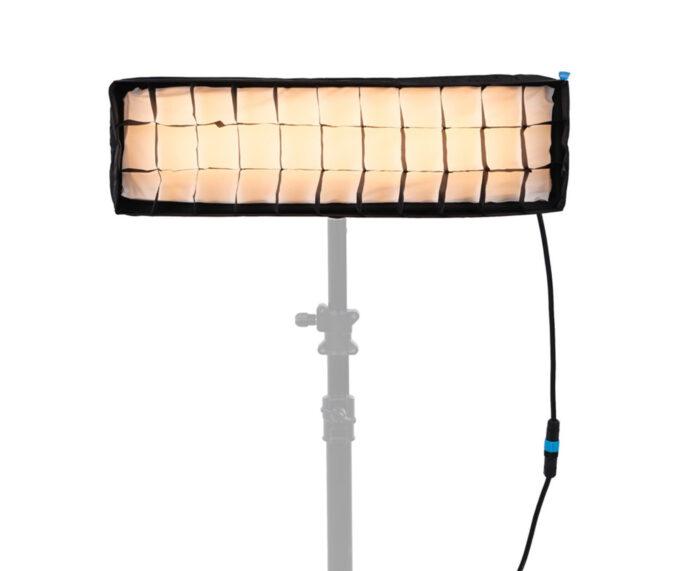

There is a dual-panel coupler kit for PavoSlim 120B, supporting horizontal (to make 2×2) or vertical (to make 4×1) coupling through the sockets on the back of the fixture body. There are custom-made foldable softboxes and eggcrates for both horizontal and vertical coupling.
Slender & Durable Case
The included carrying bag follows the design concept of the Nanlite family. Solid structure with internal explicit space partitions helps storage more conveniently. The external reinforced stitching ensures a more durable bag.

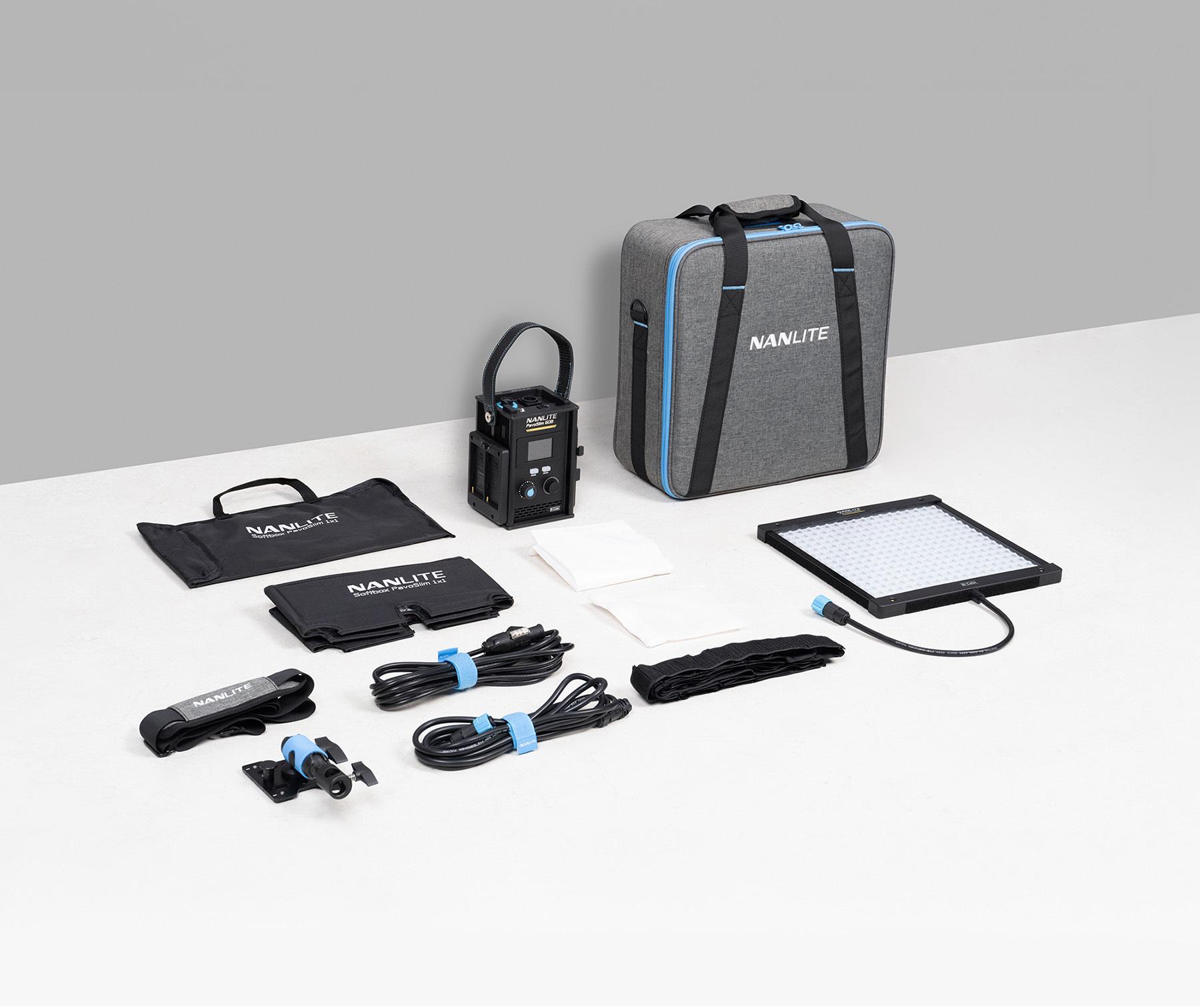

What's in the box?
- 1 x PavoSlim 60B
- 1 x Control Unit
- 1 x Universal Holder
- 1 x Baby Pin Holder
- 1 x DC Connection Cable 2.6M
- 1 x AC Power Cable 4.5M
- 1 x Softbox SB-PS60-Q
- 2 x Diffuser (Lite Diffuser × 1+Standard Diffuser × 1)

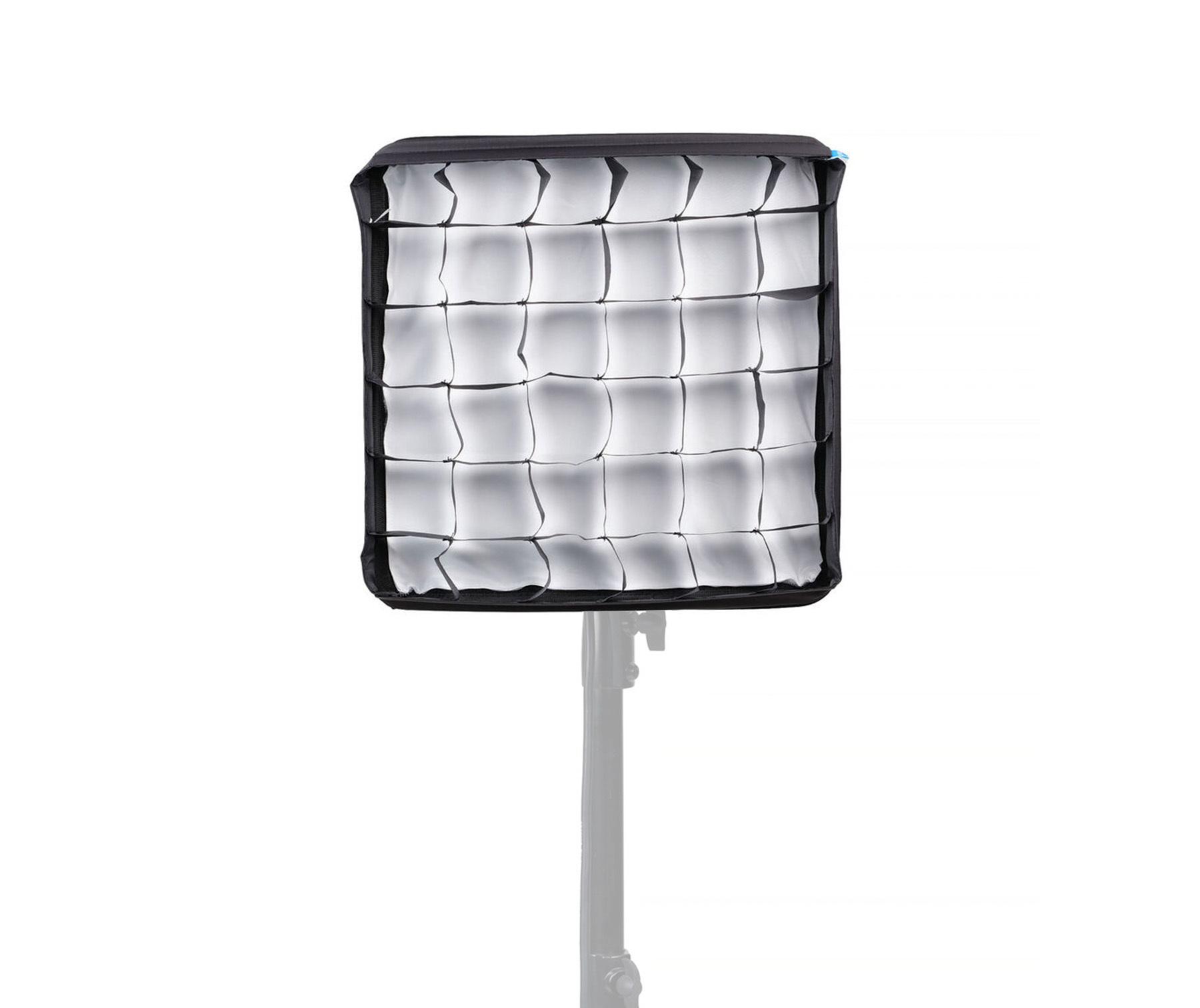

- 1 x Eggcrate
- 1 x Quick Release Clamp
- 1 x User Manual
- 1 x Carrying Bag
- Technical Data
Warranty
Limited 2-Year Warranty
Rated Power
PavoSlim 60B
72W
PavoSlim 120B
150W
Input Voltage/Current
PavoSlim 60B
DC(Battery)14.4-26V
DC(Battery)7.4V × 2
AC100-240V 50/60Hz
PavoSlim 120B
DC24V
DC(Battery)14.4-26V
AC100-240V 50/60Hz
CCT
2700K-6500K
CRI
Average 95
TLCI
Average 97
TM-30 Rf
Average 95
TM-30 Rg
Average 102
SSI (3200K)
83
SSI (5600K)
73
Dimming
0-100%
Control
On-board, Remote Controller, NANLINK APP, DMX/RDM
Special Effects
CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding
Product Size
PavoSlim 60B
Light Fixture：
306.3 × 300.65 × 18.6mm / 12.06 × 11.84 × 0.73"
Control Unit：
146.45 × 111.48 × 175mm / 5.77 × 4.39 × 6.89"
PavoSlim 120B
Light Fixture：
602 × 306.3 × 18.6mm / 23.7 × 12.06 × 0.73"
Control Unit：
140.3 × 111.48 × 203mm / 5.52 × 4.39 × 7.99"
Product Weight
PavoSlim 60B
Light Fixture：0.91kg / 2.01lb
Control Unit：1.37kg / 3.02lb
PavoSlim 120B
Light Fixture：1.65kg / 3.64lb
Control Unit：1.84kg / 4.06lb
Certifications
RoHS, CE, UKCA, FCC-ID, NCC, KCC, PSE, BIS, ETL+cETL
