Aputure amaran P60x 60W Bi-color LED Panel
Product Highlights
- 60W Output Bi-Color Lensed LED Panel
- 78W Max Power Draw
- 5,070+ lux @ 1 meter (5600K)
- CCT: 3,200K to 6,500K Expanded Bi-Color
- Stepless Dimming from 0 to 100%
- Sidus Link App Compatible
- 4 Built-in Lighting FX: Paparazzi, Strobe. Fireworks, & Pulse
- OLED display
- Soft Box Collapses Down to 20cm (7.87in)
- Three 1/4-20” Mounting Points
- Tilting Mounting Support with Umbrella Holder
- Soft Carrying Case Included
Related Products
IT'S TIME FOR AN UPGRADE
The amaran P60x is an bi-color Lensed LED Panel with 60W of intense output and is part of the newest generation of amaran LED panels. The P60x builds upon many of the existing features of previous amaran panels, including battery power & charging and compact form factor, then upgrades them with an expanded bi-color CCT range, increased durability, and Sidus Link App control. The P60x and P60c usher in a new generation of lighting for creators of all types by combining features to make them the best LED panels in their class.
PACKS A PUNCH
Utilizing its 60W LED Output, with 78W max power draw, the amaran P60x is capable of outputting 5,070 lux at 1 meter (5600K) due to its optical design, which gives it a 45° beam angle. Inside its compact form factor lies the ability to compete with difficult lighting conditions to make your subject shine. The amaran P60x uses a unique led configuration that creates more organic shadows and minimizes the obvious multi-shadow effects from LEDs arranged in a strict grid pattern.
BROAD CCT RANGE
The bi-color LED chipset of the amaran P60x gives it the ability to natively adjust its color temperature between 3200K to 6500K, resulting in an expanded bi-color range that will match the color temperature of nearly an environment you encounter.
BEAUTIFUL COLOR FIDELITY
Built with the best-in-class LED technology, and precision-designed optics to achieve even color blending and more organic shadow production, the amaran P60x is able to boast impeccable color quality and skin tone reproduction. Its bi-color LED chipset is able to reach scores of CRI 95+, TLCI 97+, SSI (Tungsten) 84, and SSI (D56) 72, producing colors on par with some of the best lights in the film industry.
BATTERY POWER
With its 78W max power draw, in addition to traditional AC power, the amaran P60x can be powered using two Sony NP-F style batteries. Two NP-F970* batteries are capable of powering the P60x for over an hour. Building on features from the previous generation of amaran products, the P60x also includes an integrated charging circuit that allows it to charge Sony NP-F batteries when the fixture is connected to AC power. Using the D-Tap Power Cable (2-Pin)*, users can also operate the amaran P60x using D-Tap V-Mount and Gold Mount batteries. *Not Included
LIGHTING FX
The amaran P60x is capable us accessing a variety of lighting FX that fully utilize its bi-color LED chipset, including: Paparazzi, Strobe. Fireworks, & Pulse .
SIDUS LINK APP CONTROL
Lighting should be fun and easy. With the integration of Sidus Mesh, the amaran P60x gives you professional lighting control with a single app, so you can adjust your light without ever having to leave your camera. Mesh technology means that every light in the Aputure and amaran product lines will automatically connect to each other and expand the range of your network. With the Sidus Link App, you can control up to 100 lights from your smartphone or tablet. Adjust each light to perfection by adjusting aspects like brightness, color temperature, built-in effects, and even programming effects between multiple fixtures.
What's in the box?
- 1 x amaran P60x 60W Bi-color LED Panel
- 1 x amaran P60x Soft Box
- 1 x amaran P60x Soft Box Light Control Grid
- 1 x AC Power Supply
- 1 x AC Power Cable
- 1 x Tilting Mounting Support with ¼-20in & 3/8-16in Spigot

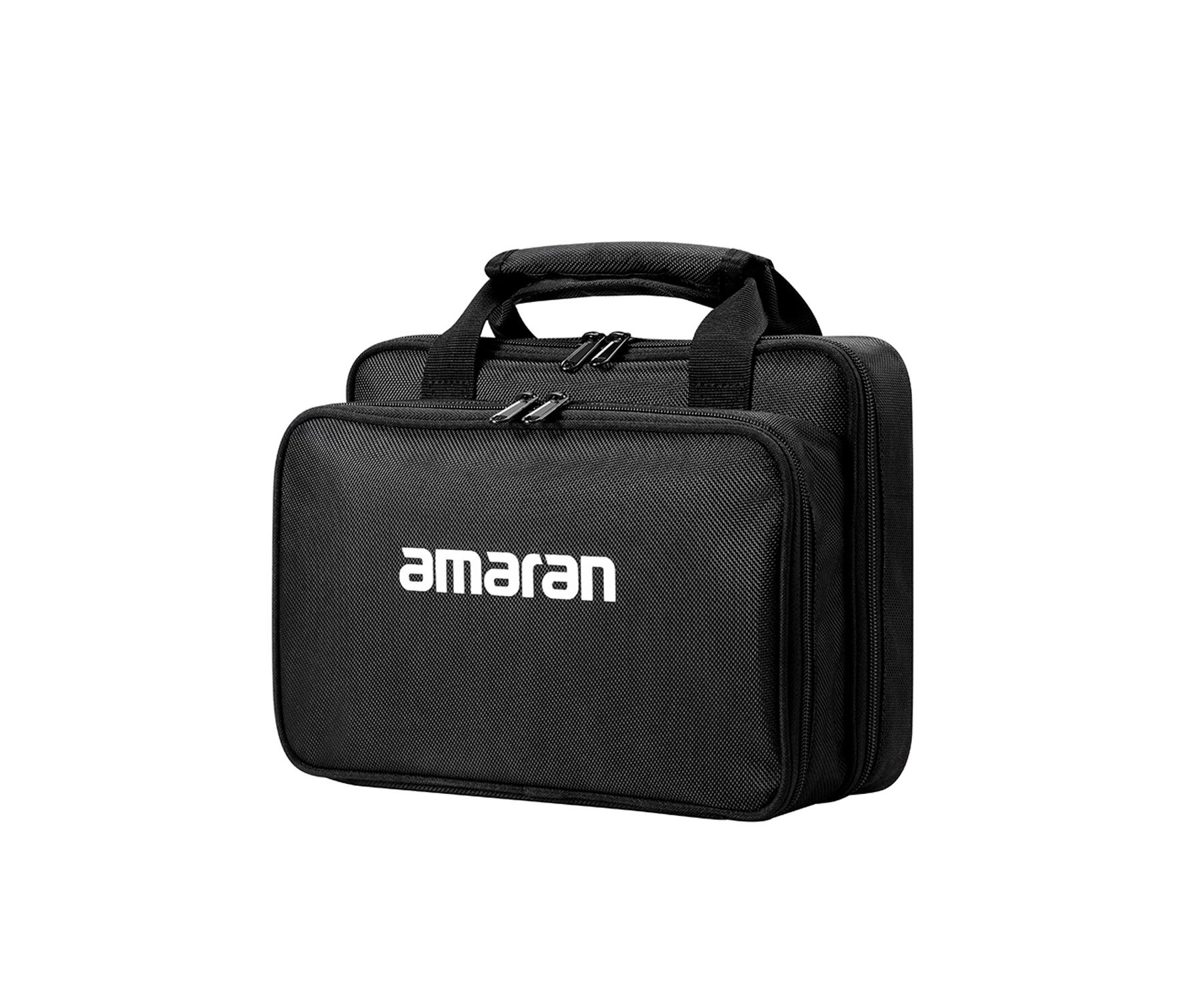

- 1 x amaran P60x Carrying Case
- CCT
- 3200K~6500K
- Beam Angle
- 45°
- Dimming
- ±1.00G
- Display
- OLED
- CRI
- ≥95
- Tcli
- ≥97
- CQS
- ≥95
- SSI
- ≥84 (Tungsten); ≥72 (D56)
- Battery Type
- 47
- Operating Temperature
- -20°C ~ 45°C / -4°F ~ 113°F
- Power Consumption
- 60W
- Mount Type
- 1/4-20in * 3, Tilting Support Column
- Cooling
- Active Cooling
- Remote Control
- On-board, Sidus Link App
- Max Power Consumption
- ≤78W
- Wireless Range
- ≥80m / 262.5ft (Bluetooth)
- AC Input Power
- Self-locking IEC C13 AC Power Cable (1.5m)
- Dc Input Power
- 2-Pin DC Self-locking Waterproof
- Photometrics
CCT 3200K
5M 17,570 lux / 1,632 fc (No Softbox); 3,480 lux / 323 fc (With Softbox)
1M 4,860 lux / 452 fc (No Softbox); 971 lux / 90 fc (With Softbox)
2M 1,280 lux / 119 fc (No Softbox); 254 lux / 24 fc (With Softbox)
3M 539 lux / 50 fc (No Softbox); 116 lux / 11 fc (With Softbox)
CCT 4300K
5M 17,670 lux / 1,642 fc (No Softbox); 3,560 lux / 331 fc (With Softbox)
1M 4,940 lux / 459 fc (No Softbox); 991 lux / 92 fc (With Softbox)
2M 1,283 lux / 119 fc (No Softbox); 261 lux / 24 fc (With Softbox)
3M 550 lux / 51 fc (No Softbox); 119 lux / 11 fc (With Softbox)
CCT 5600K
5M 18,120 lux / 1,683 fc (No Softbox); 3,660 lux / 340 fc (With Softbox)
1M 5,070 lux / 471 fc (No Softbox); 1,023 lux / 95 fc (With Softbox)
2M 1,328 lux / 123 fc (No Softbox); 268 lux / 25 fc (With Softbox)
3M 572 lux / 53 fc (No Softbox); 123 lux / 11 fc (With Softbox)
CCT 6500K
5M 18,410 lux / 1,710 fc (No Softbox); 3,730 lux / 347 fc (With Softbox)
1M 5,180 lux / 481 fc (No Softbox); 1,041 lux / 97 fc (With Softbox)
2M 1,354 lux / 126 fc (No Softbox); 273 lux / 25 fc (With Softbox)
3M 585 lux / 54 fc (No Softbox); 126 lux / 12 fc (With Softbox)
- Tripod Connector
Estimated LED Lifetime (L70)
50,000 Hours
Estimated Color Shift Over Lifetime (CCT)
2% over 6,000 Hours
- Dimensions
Fixture
25.1*17.5*3.95cm / 9.8*6.8*1.5in
Aperture
25.07*17.37cm / 9.87*6.84in
Soft Box (Collapsed)
20*20*2.5cm / 7.87*7.87*9.84in
Soft Box (Built)
39.5*28.5*10cm / 15.55*11.22*3.94in
Carrying Case
25.7*18*9.5cm / 10.12*7.09*3.74in
- Weight
Fixture
0.979kg / 2.15lbs
Soft Box
0.17kg / .37lbs
Power Supply
0.50kg / 1.1lbs
Mounting Bracket
0.24kg / .52lbs
