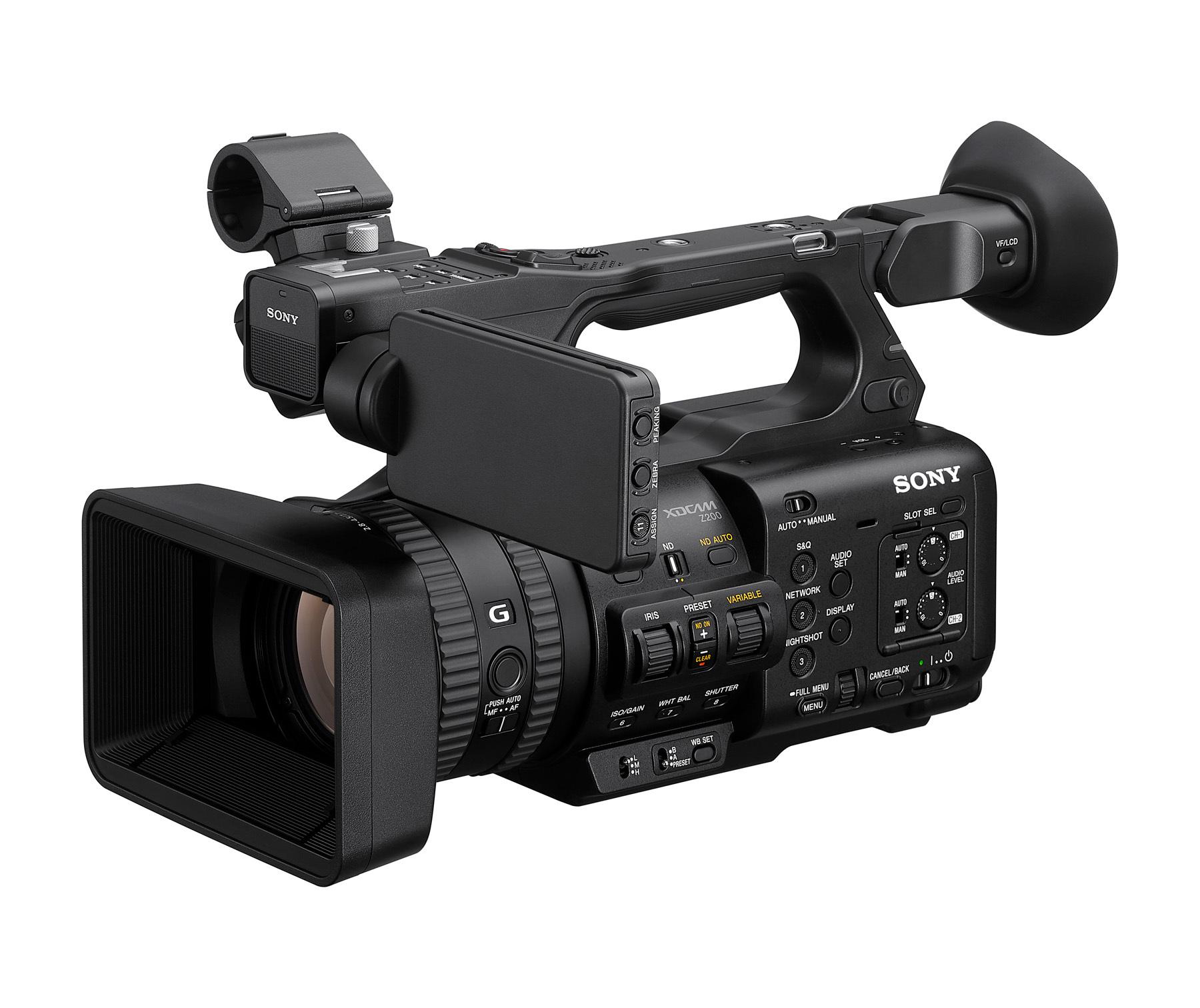

Sony PXW-Z200 Camcorder
Product Highlights
- 1.0-type Exmor RS CMOS sensor
- BIONZ XR image processing
- 12G-SDI Out, up to UHD 4K60 HDR with HLG
- 2.4/5 GHz Live Streaming, Timecode I/O
- AI-Powered Autofocus & Auto-Framing
- 20x Optical, 30x Clear Image Zoom in 4K
- 4K120 & 1080p240 High Frame Rates
- XAVC S-I, HS-L, S-L, HD/QFHD Recording
- S-Cinetone, ITU709, 709tone, HLG Options
- Dual CFexpress Type-A/SD Card Slots
- 4-Channel Audio, Monitor & Control App
PXW-Z200
Shoot, record and stream in 4K HDR, with a 20x optical zoom, AI-powered Subject Recognition AF, integrated 2.4 GHz/ 5 GHz* Wi-Fi and 12G-SDI connectivity.
* 5 GHz communication may be restricted in some countries and regions.
Crisp details and vivid colours, every time
Capture stunning 4K HDR footage, with colours, textures and details that stand out. The Z200’s powerful 1.0-type Exmor RS™ stacked CMOS sensor delivers images with high sensitivity and low noise, at up to 120fps* in 4K, 240fps in FHD. Preserve every detail with full-pixel readout and real-time BIONZ XR™ image processing, while compatibility with 709tone and S-Cinetone™ makes colour-matching to Cinema Line and Sony system cameras easy.
* With approx. 23% crop. Please refer to the Operating Instructions for minimum memory card requirements to ensure correct operation.
Intelligent features for smarter shooting
Depend on Sony innovations that help you to capture the best content possible. Our advanced AI Processing Unit can recognise human subjects, while the Fast Hybrid AF system tracks your subject and maintains precise focus at all times. An Electronic Variable ND Filter means you can achieve the best exposure for your shots, in a wide range of lighting conditions, or the Auto ND function will automatically set optimal exposure for you.
Reliable streaming and broadcast TV-friendly connectivity
Built-in 2.4 GHz and 5 GHz* Wi-Fi – in concert with our C3 Portal (paid) or XDCAM Pocket apps – powers simple, high-quality streaming direct from the camera. Remote operation via our Monitor & Control** app allows you to check angles and monitor shooting from your smartphone or tablet. The Z200 also offers built-in 12G-SDI with four times the bandwidth of 3G-SDI over a single cable, TC input/output and broadcast-friendly XAVC (MXF).***
* 5 GHz communication may be restricted in some countries and regions.
** Monitor & Control is available from Google Play Store and Apple App Store, free of charge.
*** Support planned for June 2025 or later.
1.0-type Exmor RS CMOS sensor
For imaging performance otherwise unobtainable for a compact camcorder, the Z200 relies upon large approx. 14.0 megapixel (effective) 1.0-type Exmor RS CMOS image sensor. Its unique stacked structure – with back-illuminated pixels layered over integrated signal processing circuits – enables both faster read-out speeds and superior low-light performance due to more light reaching the sensor.
BIONZ XR image processing
Integrated within the image sensor, our latest generation BIONZ XR image processor enables higher frame rates, faster autofocus, improved Auto Tracing White Balance (ATW) control and superior noise reduction. It extracts maximum performance from the high-resolution image sensor, effortlessly capturing the most subtle textures and finest detail. 5K oversampling with full-pixel readout condenses ample image information into stunning 4K (3840 x 2160) 60p video.
Enhanced White Balance Accuracy
The Z200’s Auto Tracing White Balance (ATW) control has evolved alongside the BIONZ XR and AI capabilities. The camera’s AI Processing Unit enables more precise ATW control, even in challenging lighting conditions, such as when the targeted person is in shadow.
Advanced AI Processing Unit for next-generation AF
A specialised AI Processing Unit, working in concert with BIONZ XR, uses deep learning based on human form and posture data to recognise human subjects with high precision. The Fast Hybrid AF system offers wide 81% coverage to better support Subject Recognition AF and Real-time Tracking. The Z200 can effortlessly track and maintain focus on subjects just about anywhere in the frame.
Auto Framing*
With Auto Framing engaged the camera will automatically track a recognised human subject and adjust framing so that the subject is always prominently positioned in the frame. The resulting footage can look as though a human operator was manually adjusting framing throughout a shoot – even though the camera was stationary the entire time. Solo operators can concentrate on engaging with an interviewee without constantly checking on camera positioning.
* 4K footage is cropped, resulting in a narrower angle of view. Please note this image was shot on the HXR-NX800.
4K 120fps* for stunning slow-motion footage
The high readout speed of the Exmor RS sensor enables 4K high frame rate (HFR) recording at up to 120fps and FHD at 240fps. Achieve 4x slow motion in 4K at 30p or 5x slow motion at 24p. Whatever your creative choice, high-speed AF helps ensure your subject is kept in focus. Slow & Quick Motion** is supported for up to 4K 120fps and FHD 240fps recording.
* With approx. 23% crop. 100fps/200fps in PAL mode. Please refer to the operations manual for minimum memory card requirements to ensure correct operation.
** Audio is not recorded in Slow & Quick Motion.
20x optical zoom
One superb 20x power zoom G Lens™ covers everything from wide angle in-car interviews to telephoto close-ups for sports. Delivering an optical zoom range of 24-480 mm (35mm full-frame equivalent), it’s backed up by Sony’s Clear Image Zoom technology, which adds the ability to achieve 30x zoom when recording 4K or 40x zoom in FHD. And you can explore maximum apertures of F2.8 (wide) and F4.5 (telephoto) while zooming quickly, smoothly and silently.
24 mm
480 mm
Advanced image stabilisation
Minimise the effects of camera shake with built-in image stabilisation. Make sure of smooth, stable footage in Active Mode* image stabilisation, where optical and electronic stabilisation works together to make handheld shots glide effortlessly.
* Slight image crop in Active Mode. Active Mode is not available when recording at frame rates of 120 (100) fps or higher, including S&Q.
Built-in Electronic Variable ND Filter
Seamlessly adjust the Electronic Variable ND Filter to suit a variety of light levels. Move from 1/4 to 1/128 ND with a simple dial adjustment or rely on the Auto ND function to maintain the optimum exposure for you—especially useful when moving quickly between indoor and outdoor environments.
Accurate LCD monitor and OLED viewfinder
Easily monitor and focus subjects with a new 3.5-type LCD monitor that offers approximately 27.6 million dots with outstanding brightness and clarity. The monitor swings up and down as well as backward, so finding a comfortable viewing angle is easy. The supplied LCD hood is easily installed by sliding it into the grooves in the top and bottom of the LCD monitor, while the monitor can be folded away for storage even with the hood installed.
For clear, undistracted viewing, the high-contrast 0.39-type OLED viewfinder shuts out extraneous light while offering approximately 23.6 million dots.
Compact design and storage
Easily fold the EVF and LCD panel away for storage of this lightweight camera. The Z200 (main body only) weights approximately 1.96 kg (4 lb 5.1 oz) and measures 175.6 mm (7 inches) x 201.3 mm (8 inches) x 371.1 mm (14 5/8 inch) (WxHxD), but when for storage, these dimensions fall to 175.6 mm (7 inches) x 175.4 mm (7 inches) x 285.1 mm (11 1/5 inch) (WxHxD)*. The microphone holder can be detached from the camera for even greater portability.
* Without the lens hood, the microphone holder and the large eyecup.
Flexible camera control
The Z200 is designed with the flexibility to operate according to your individual preferences and workflow demands. Two independent control rings for focus/zoom [1]* and two dials for IRIS/ND Variable [2] are located side-by-side, allowing for effortless control of exposure along with focus and zoom. The Z200 also has 12 user-assignable buttons (ASSIGN 1-11 [3] and FOCUS PUSH AUTO button [4]) that you can set to control almost any camera feature.
* Iris control will be assignable to a control ring in June 2025 or later.
AUTO/MANUAL switch
If shooting conditions suddenly disrupt your plans, you can automatically adjust settings and maintain ideal brightness and white balance with a single switch. When set to AUTO, it engages Auto ND Filter, Auto Iris, Auto Gain Control, Auto Shutter, and Auto White Mode.
Cinematic and broadcast base looks
Achieve the look of professional broadcast or film productions with ease. Use presets for S-Cinetone, ITU709, 709tone, HLG Live, HLG Mild and HLG Natural, then adjust black, matrix and other parameters as desired. Easily colour match your footage with content shot on Sony’s other broadcast and Cinema Line cameras.
Multiple recording options
The Z200 offers a variety of recording formats to suit your project requirements. XAVC (MXF)* provides enhanced compatibility for MXF-based broadcast TV workflows. XAVC S-I offers the highest quality 10-bit 4:2:2 recording for 4K (QFHD) using post-production-friendly Intra-Frame H.264. XAVC HS-L (H.265) and XAVC S-L (H.264) offer a choice of 4:2:2 or 4:2:0 with Long GOP recording for extended recording times and file-saving efficiency. XAVC HS Proxy recording of up to 16 Mbps can be recorded simultaneously with higher bit-rate formats, and these smaller proxy files can then be used for editing and previewing before final production delivery.
* Supported from June 2025 or later.
Comprehensive connectivity
Use SDI input and output (12G, 6G, 3G Level A & B, and HD), as well as TC input and output, for proxy recording and multi-camera productions. Connect with external equipment through HDMI Type-A, USB Type-C®, LAN, REMOTE, and a range of other connectors.
Wireless monitoring and remote control
Check angles remotely, before shooting, then monitor and control the camera, all thanks to built-in 2.4 GHz and 5 GHz Wi-Fi connectivity*. Download the free Monitor & Control app to record, touch focus, adjust iris, and more**.
* 5 GHz may be restricted in some regions
** Monitor & Control is available from Google Play Store and Apple App Store
4-channel audio
Record up to four channels of audio by combining inputs via XLR connectors and the Multi-Interface (MI) Shoe. Adjust levels for two of the channels using audio level dials, without accessing device menus. Together with the SMAD-P5 adapter, our UWP-D Series lets you capture pristine audio – quickly, reliably and with no fuss.
Designed for live streaming
Stream directly to compatible live streaming services and video-sharing sites, via a hard-wired or Wi-Fi connection. RTMP/RTMPS or SRT protocols make it easy for a single operator to efficiently manage everything from recording to distribution. Additional apps and technologies allow you to do even more:
- Creator’s Cloud for enterprise C3 Portal (paid)* and XDCAM Pocket applications use Sony’s original QoS technology to support high-quality streaming.
- Creator’s Cloud for enterprise M2 Live application (paid)* enables broadcast/distribution for multiple cameras.
- PDT-FP1 Portable Data Transmitter* offers stable, continuous high-speed data transfer and wide coverage of bands, including LTE, and both 5G Sub6 and mmWave.
- CBK-RPU7 Remote Production Unit allows low-latency transmission of high-quality images via an SDI connection.
* Availability is limited to specific regions.
Simple file transfers
Easily upload proxy and original clips to a cloud or FTP server, straight from the memory card. After registering the destination server in the camera, recorded files are transferred automatically whenever the recording stops. Proxy clips can even be recorded in segments and sequentially transferred during recording.
The Creator’s Cloud for enterprise C3 Portal (paid)* application makes cloud transfers easy, so video files are available for editing and sharing even sooner.
* Availability is limited to specific regions
Dual memory card slots
Record on two cards simultaneously or use relay recording to back up your content. Dual memory card slots support both CFexpress Type A and SD memory cards.
Dependable battery power
Quickly charge BP-U35, BP-U70 or BP-U100 lithium-ion batteries using the BC-U1A or BC-U2A charger (batteries and charger sold separately). Continuous operating time with a BP-U35 battery is approximately 90 minutes. Swap batteries between other Sony cameras, including the PXW-Z280 and PXW-Z190 camcorders, as well as the FX9 and FX6 Cinema Line cameras.
Internal fan and vents
Maintain optimum operating temperature, thanks to a built-in cooling fan and carefully designed vents.
Accessibility
A screen reader function* means you can have menu screens read aloud with user-selected volume and reading speed. A screen magnifier feature increases the size of record, playback and menu screens with a user-selected magnification ratio.
* Availability varies depending on region and language.
What's in the box?
- 1 x Sony PXW-Z200 Camcorder
- 1 x AC Adapter
- 1 x Power Cord
- 1 x Battery Charger
- 1 x Battery Pack
- 1 x LCD Hood
- 1 x Lens Hood
- 1 x Eyecup
- 1 x Microphone Holder
- 1 x Cold Shoe Kit
- General
Camera Type
Solid-state memory camcorder
Mass (Main Body Only)
Approx. 1960 g (4 lb 5.1 oz.)
Mass (including Supplied Accessories and Battery)
Approx. 2400 g (5 lb 4.7 oz.) *1
Dimensions (W x H x D)
Approx. 175.6 x 201.3 x 371.1 mm (7 inch x 8 inch x 14 5/8 inch)
Battery
BP-U35, BP-U70, BP-U100
Battery
Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
Power Requirements
DC 19.5 V
Normal Power Consumption
Approx. 20 W
Maximum Power Consumption
Approx. 37 W
Operating Temperature
0 to 40 ℃ (32 ℉ to 104 ℉)
Storage Temperature
-20 to 60 ℃ (-4 ℉ to 140 ℉)
Battery Operating Time (Continuous Shooting)
90 minutes*2
Recording Format (Video)
XAVC S: MPEG-4 AVC / H.264
XAVC HS: MPEG-H HEVC / H.265
- Lens
Zoom Ratio
20x
Focal Length
f=7.71-154.21 mm
Focal Length (35mm Format Equivalent)
24-480 mm
Iris
F2.8-F4.5
Focus Range (from the front of the Lens)
Approx. 10 mm to ∞
Filter Diameter
72 mm
- Camera Section
Imaging Device (Type)
1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
Number of Pixels (Total)
Approx. 20.9 megapixels
Number of Pixels (Effective)
Approx. 14.0 megapixels max.*3
Built-in ND Filter
Linear variable ND (1/4 ND - 1/128 ND)
Minimum Illumination
1.2 lx (typ)*4
RAW Output
-
Optical Low Pass Filter
Yes
Shutter Type
Electronic shutter
Shutter Speed
1/8000 sec to 64F
Slow & Quick Motion (S&Q)
Yes
White Balance
2000 K - 15000 K
Gain
-3 to 36 dB (Every 1 dB)
Base Look
S-Cinetone, ITU709, 709tone, s709, 709(800%), S-Log3, HLG (Live / Mild / Natural)
Image Stabilization (Type)
Lens-shift mechanism and electronic
Image Stabilization (Mode)
Active / Standard / Off
Lens Compensation
Peripheral Shading, Chromatic Aberration, Distortion
ISO Sensitivity
ISO 250-16000 equivalent (Using SDR Reset look), AUTO (ISO 250-16000, selectable lower limit and upper limit)
Focus Type
Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
Focus Point
Max. 475 points (Phase-detection AF)
Focus Recognition Target
Human
Other Focus Features
AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist
Proxy Recording
Yes
Clear Image Zoom
Approx. 1.5x (4K), approx. 2x (HD)
- Interface
Audio Input
3.5 mm Stereo minijack, XLR 3-pin (Female) x2
Multi Interface Shoe
Yes (With Digital Audio Interface)
Built-In Microphone
Built-in, stereo
Headphone Terminal
Yes (3.5 mm Stereo minijack)
Built-In Speaker
Built-in, monaural
Recording System (Audio)
LPCM 4ch (48 kHz 24 bit)
SDI Output
BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A / B), HD-SDI
HDMI Output
HDMI connector (Type-A)
TC / UB
Yes
Timecode Input / Output
BNC, TC IN/OUT Switchable
Genlock Input
-
Multi / Micro USB Terminal
-
USB Terminal
Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
DC Input
Yes
Remote
Yes (2.5 mm Stereo mini-mini jack)
Remote (Wireless)
Yes (Bluetooth remote control)
Wired LAN
Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
Wireless LAN (Built-In)
Yes (Wi-Fi Compatible, IEEE 802.11a / b / g / n / ac (2.4 GHz band / 5 GHz band)) *5 *6
PC Interface
Mass-storage / MTP
Other Function
FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)
- Monitoring
Type (Viewfinder)
1.0 cm (0.39-type) electronic viewfinder (XGA OLED)
Number of Dots (Viewfinder)
2 359 296 dots
Magnification (Viewfinder)
Approx. 1.07x *7 with 50 mm lens at infinity,-1 m-1
Diopter Adjustment (Viewfinder)
-4.0 to +3.0 m-1
Eye Point (Viewfinder)
Approx. 22 mm from the eyepiece lens, at -1 m-1 *8
Type (LCD Screen)
8.8 cm (3.5-type) type TFT
Touch Panel (LCD Screen)
Yes
Number of Dots (Total) (LCD Screen)
2 764 800 dots
- Media Type
SLOT A: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card
SLOT B: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card
- Streaming
RTMP, RTMPS, SRT
Video Data Format
MPEG-4 AVC / H.264
MPEG-H HEVC / H.265
Video Resolution
3840 x 2160 (Using RTMP / RTMPS), 1920 x 1080, 1280 x 720
Audio Data Format
AAC-LC 2ch (16bit 48 kHz)
- Accessibility Functions
Enlarge Screen, Screen Reader
