Atomos Shinobi II 5.2" 4K HDMI Monitor
Product Highlights
- Perfect for video and photography
- High 1500 cd/m² Brightness
- 5.2" 1920 x 1080 Capacitive Touchscreen
- 4K HDMI Input, HDR/HLG/PQ Support
- AtomHDR Mode with 10-Stop Dynamic Range
- USB PD Power, USB-C/LANC Camera Control
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.
Related Products
Slimmer. Brighter. Camera control.
The slim, lightweight, high brightness, 5-inch 1500nit HDR monitor that’s perfect for vloggers, creatives and photographers
The next generation
30% thinner design
50% brighter HDR screen
Atomos has been developing amazing monitoring and recording technology for over a decade. Shinobi II has been redesigned with a new, slimline case and 50% brighter screen and still manages to pack all of our renowned HDR screen processing technology and professional monitoring tools.
Perfect for video and photography
Shinobi II will run all day on a single battery and offers a host of professional monitoring features. Set up your shots accurately using our advanced histograms, waveforms and videoscopes. A multi-tool Analysis View gives you all the essential info at a glance. There’s even a selfie Mirror Mode for vloggers. Shinobi II is the perfect accessory to improve any photo or video production.
New camera control and locking cables
Camera control
A much requested feature from original Shinobi users, camera control is now possible thanks to the addition of the USB-C connection.
Using specially designed on-screen sliders you can adjust white balance, lens aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shinobi II.
At launch, Shinobi II will be able to control most Canon, Panasonic, and Sony mirrorless cameras over USB-C, and all Z CAM E2 series models (LANC cable required, purchased separately). Cameras from Fujifilm, Nikon, OM System and SIGMA will be supported with future firmware updates.
Cable locking
Atomos has developed a unique and rugged locking ecosystem to maintain a secure grip on connected HDMI and USB-C cables and Shinobi II is supplied with a special bracket to facilitate this. With Atomos locking cables (purchased separately) it is the most robust capture cable system available today. Shinobi II is also fully compatible with standard, non-locking cables.
Physical
- Dimensions (W x H x D)
- 151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached)
- Weight
- 210g / 7.4oz.
- Mounting Points
- Bottom: 1 x 1/4-inch 20 with anti-rotational points
Environmental
- Ambient Operating Temperature
- Up to 40 degrees Celsius
Construction
- Body
- ABS Polycarbonate Plastic
- Cooling
- Passive heat sink
- Multi-Function Button
- Power / Lock Screen
- Touch Screen
- Capacitive Touch
Power
- Input Voltage
- 6.2V to 16.8V
- Compatible Batteries
- 1 x NP-F / L-Series
- Built-in battery
- No
- Continuous Power
- Via NPF battery or USB-C PD
- DC-In Connector
- Via Battery Eliminator (separate purchase)
- D-Tap
- Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable
Display
- Display Panel
- SuperAtom IPS Panel (Capacitive Touch)
- Size
- 5.2-inch
- Resolution
- 1920 x 1080
- Viewing Angle
- 178 + H & V
- Pixels Per Inch PPI
- 427
- Bit Depth
- 10-bit (8+2 FRC)
- Backlight Type
- Edge-lit
- Brightness (cd/m² / nits)
- 1500
- Aspect Ratio
- 16:9
- Color Gamut
- Rec.709
- Calibration Support
- Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C)
Color Pipeline
- Gamma
- Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
- Gamut
- BT2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, ARRI Alexa Wide Gamut, Rec.709, JVC LS300, RED DragonColor / DragonColor2 / REDColor2 / REDColor3 / REDColor4 / REDWideGamut
- 3D LUT Display
- .Cube format (17 & 33 points supported)
- 3D LUT 50/50 Split
- Yes
- Monitoring Modes
- SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
- Display Controls
- Backlight, Lift, Gamma, Gain
- AtomHDR
- Built-in Technical Log to HDR EOTF
- 3D LUTs
- Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring
Video Input
- HDMI
- 1 x HDMI (1.4)
- Bit Depth
- 8 / 10-Bit
- Chroma Subsampling
- YCbCr 4:2:0 & 4:2:2
Audio In/Out
- HDMI Embedded
- 2-channel, 24-bit, input dependent
- Headphone Output
- 3.5mm headphone jack, 2-channel
Resolution and Frame Rates (Monitoring)
- 4K DCI
- 23.98/24/25/29.97/30
- 4K UHD
- 23.98/24/25/29.97/30
- FHD 1920 x 1080 Progressive
- 23.98/24/25/29.97/30/50/59.94/60
- FHD 1920 x 1080 Interlaced
- 50i/60i
- 1280 x 720 Progressive
- 50/59.94/60p
Supported Media
- SD Card
- Update firmware & upload LUTs
- File System
- FAT32, NTFS
On-Screen Tools
- MultiScope Analysis View
- Image, waveform, histogram, & vectorscope
- Waveform
- 3 sizes – adjustable opacity & brightness
- Histogram
- 3 sizes – adjustable opacity & brightness
- RGB Parade
- 3 sizes – adjustable opacity & brightness
- Vectorscope
- 1 size – adjustable opacity & brightness
- 1 x Zoom
- Tap to Zoom
- 2 x Zoom
- Tap to Zoom
- 4 x Zoom
- Tap to Zoom
- Focus Peaking
- 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
- Atomos False Color
- Yes, with Scale
- Zebra
- Adjustable threshold (50% to 105%)
- Isolate Color Channel
- Blue only
- Cine Frame Guides
- Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
- Social Frame Guides
- Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
- Safe Areas
- SMPTE Safe Title Area – 93% & 90%
- Grid Markers
- 9 grid
- Anamorphic Desqueeze
- 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
- Display Flip
- Horizontal & Vertical
External Device Control
- USB-C
- Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator
- Serial 2.5mm Jack
- Camera control for Z CAM cameras via optional USB to Serial Cable
What's in the box
- Included
- Shinobi II, USB-C 2.0 cable, HDMI + USB-C locking cable adapter, Quick Start Guide
- Optional Accessories

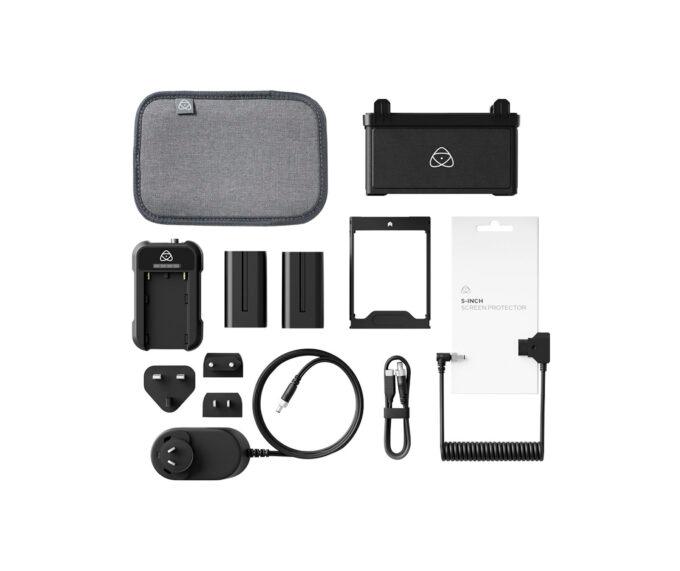

- Quick Release Monitor Mount, NP-F Battery Eliminatior, DC to DTap Cable, Power Kit, HDMI cables, USB-C to serial cable
Warranty
- Standard
- 1 year. Extended to 2 years on product registration.
