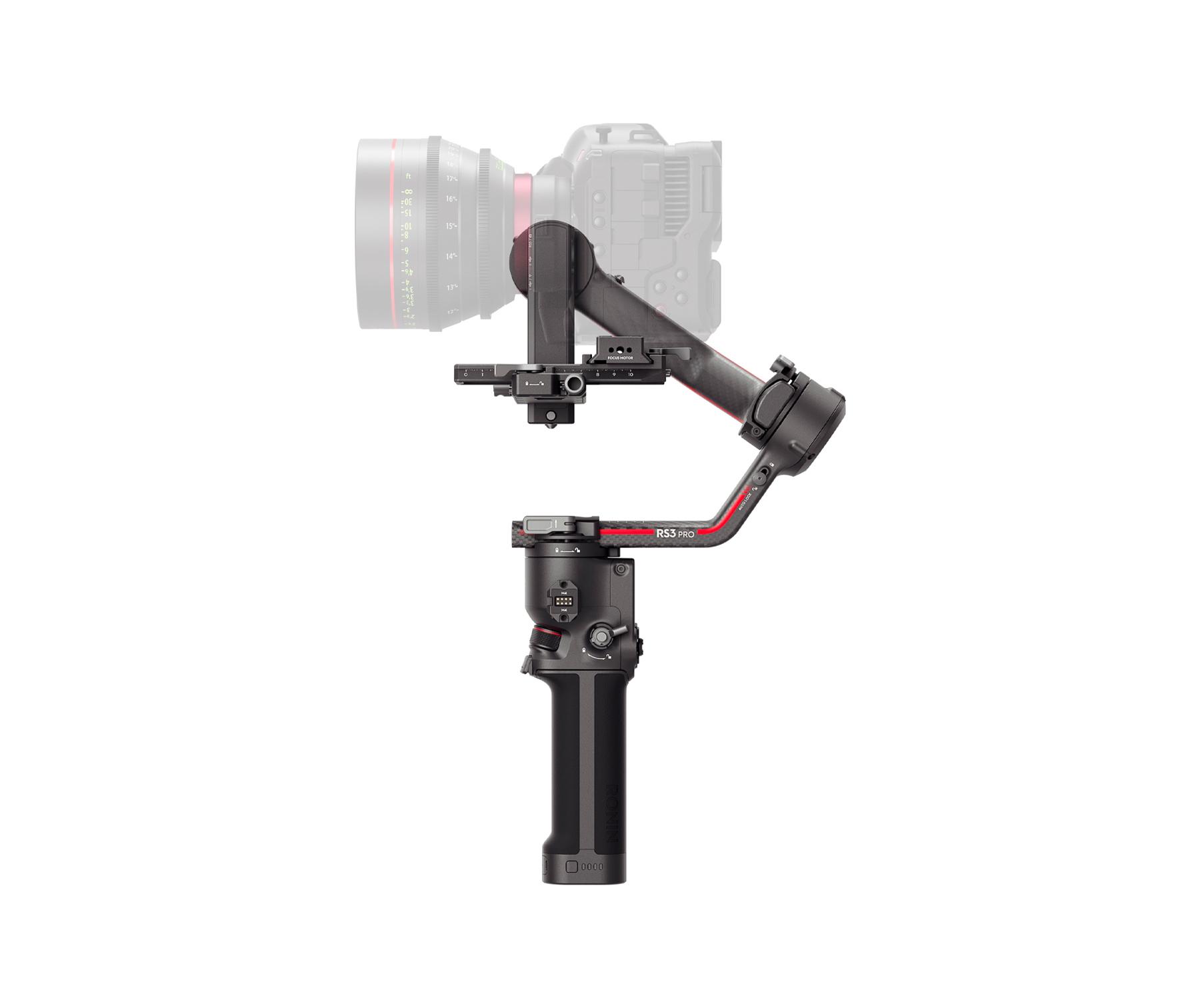

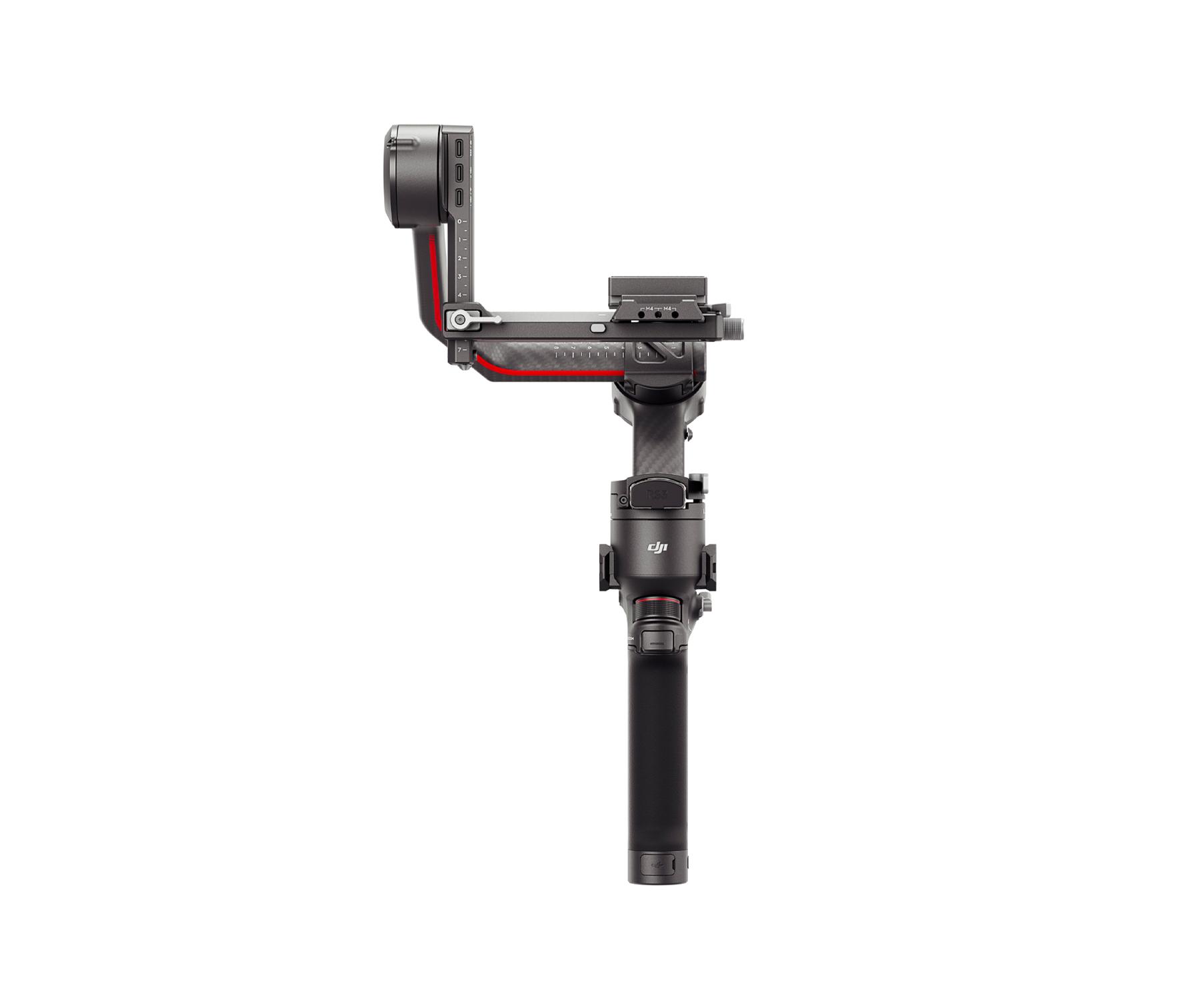

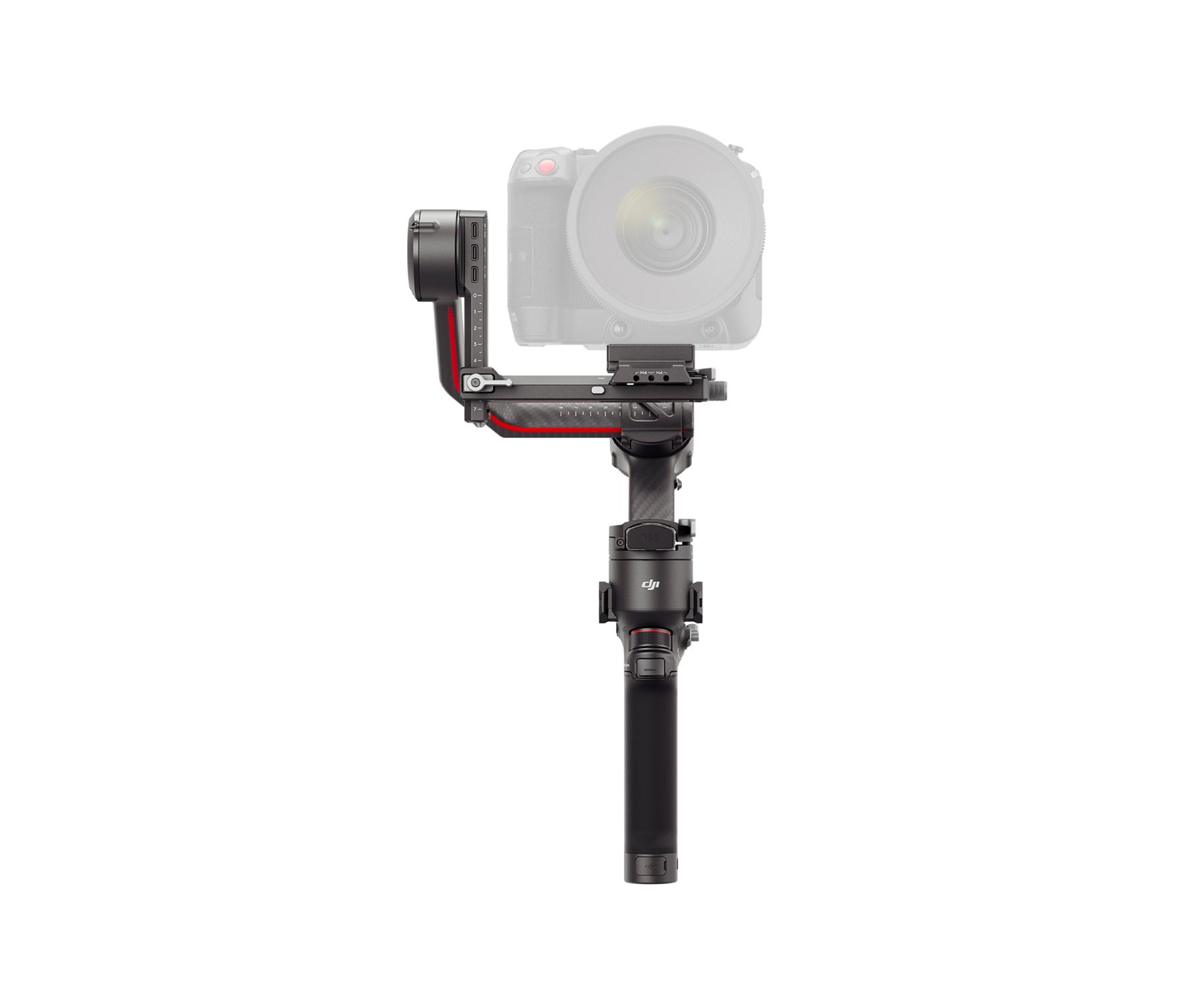

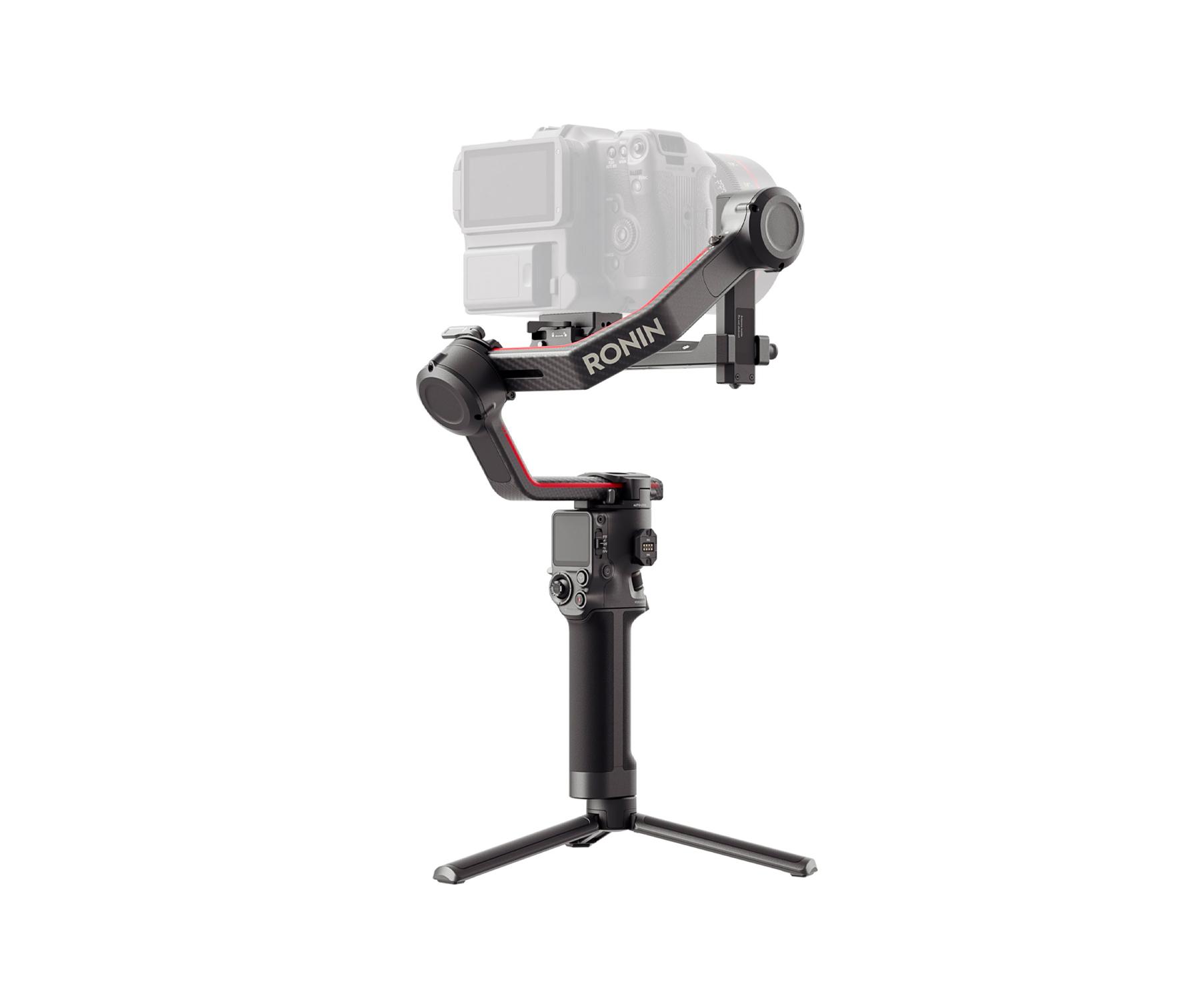

DJI RS 3 Pro
Product Highlights
- Automated Axis Locks
- Extended Carbon Fiber Axis Arms
- 4.5kg (10lbs) Tested Payload
- LiDAR Focusing
- O3 Pro Transmission
- Dynamic & Versatile Solution
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.

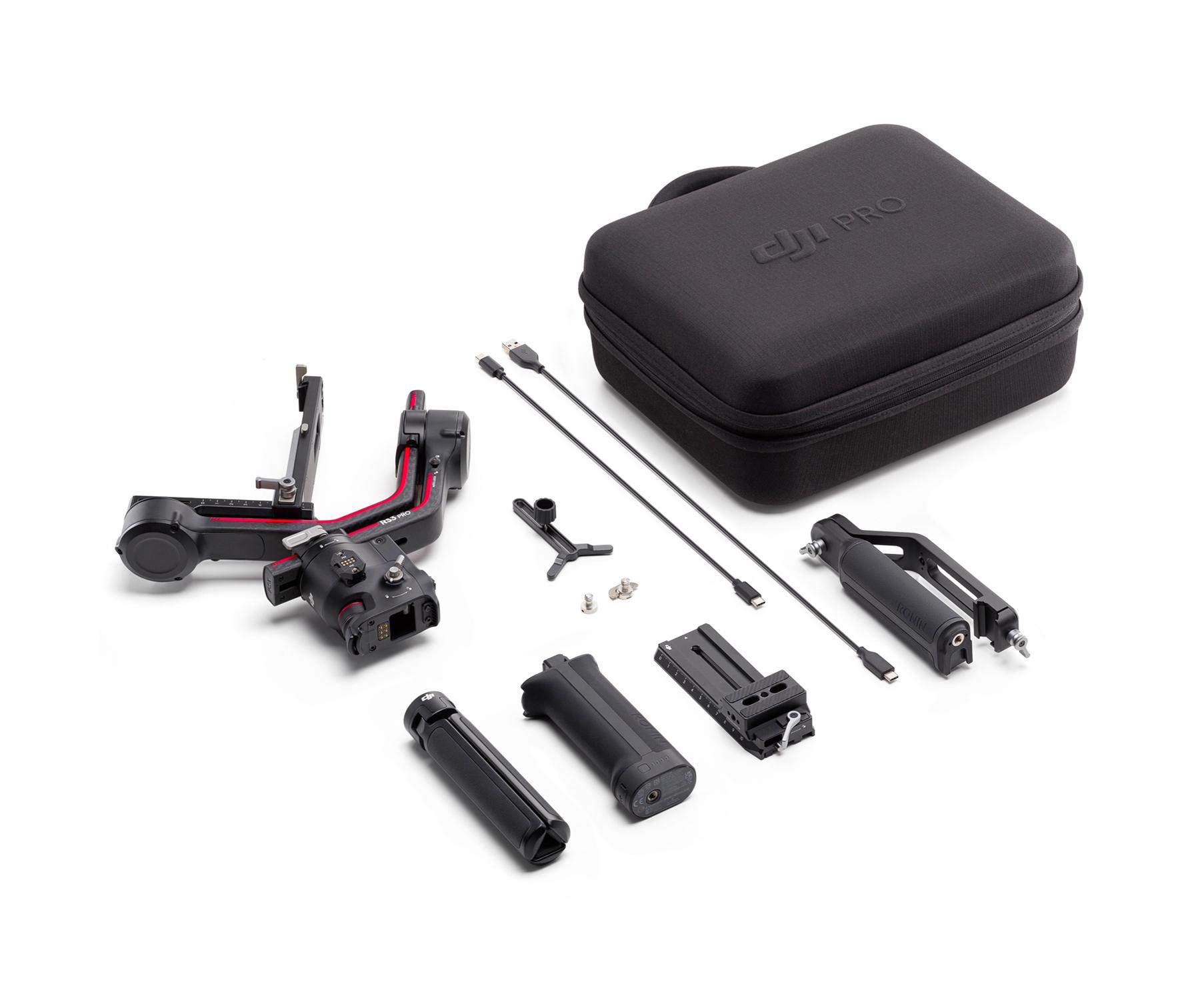

What's in the box?
- 1 x DJI RS 3 Pro
- 1 x Carrying Case
- 1 x BG30 Grip
- 1 x Lens-Fastening Support (Extended)

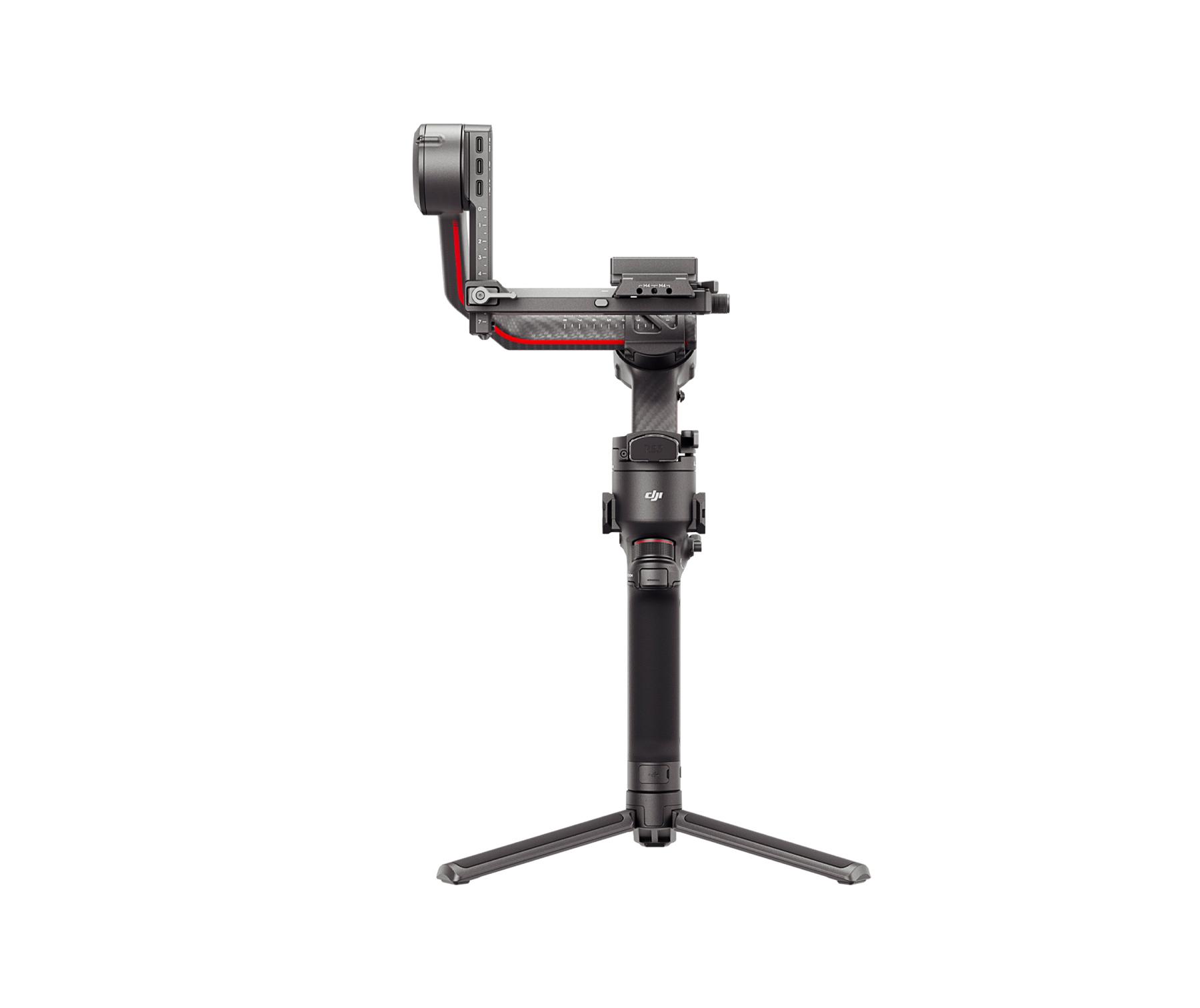

- 1 x Extended Grip/Tripod (Metal)
- 1 x Quick-Release Plate (Arca-Swiss/Manfrotto)
- 1 x Briefcase Handle
- 1 x Multi-Camera Control Cable (USB-C, 30 cm)
- 1 x Screw Kit
- 1 x USB-C Charging Cable (40 cm)
- Accessory Port
NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
- Battery
Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours [1]
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
- Connection
- Bluetooth 5.0; Charging Port (USB-C)
- Payload
- 4,5 kg
- Control
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°
- Frequency
- 2,400 - 2,484 GHz ; 5,725 - 5,850 GHz
- Bluetooth
- <8 dBm
- Operating Temperature
- -20° to 45° C (-4° to 113° F)
- Dimensions
Weight
Gimbal: Approx. 1,143 g
Grip: Approx. 265 g
Extended Grip/Tripod (Plastic): Approx. 226 g
Upper and Lower Quick-Release Plates: Approx. 107 g
Dimensions
Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 415×218×195 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
- Transmitter Power
2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)
- Accessory Port
- Cold Shoe
