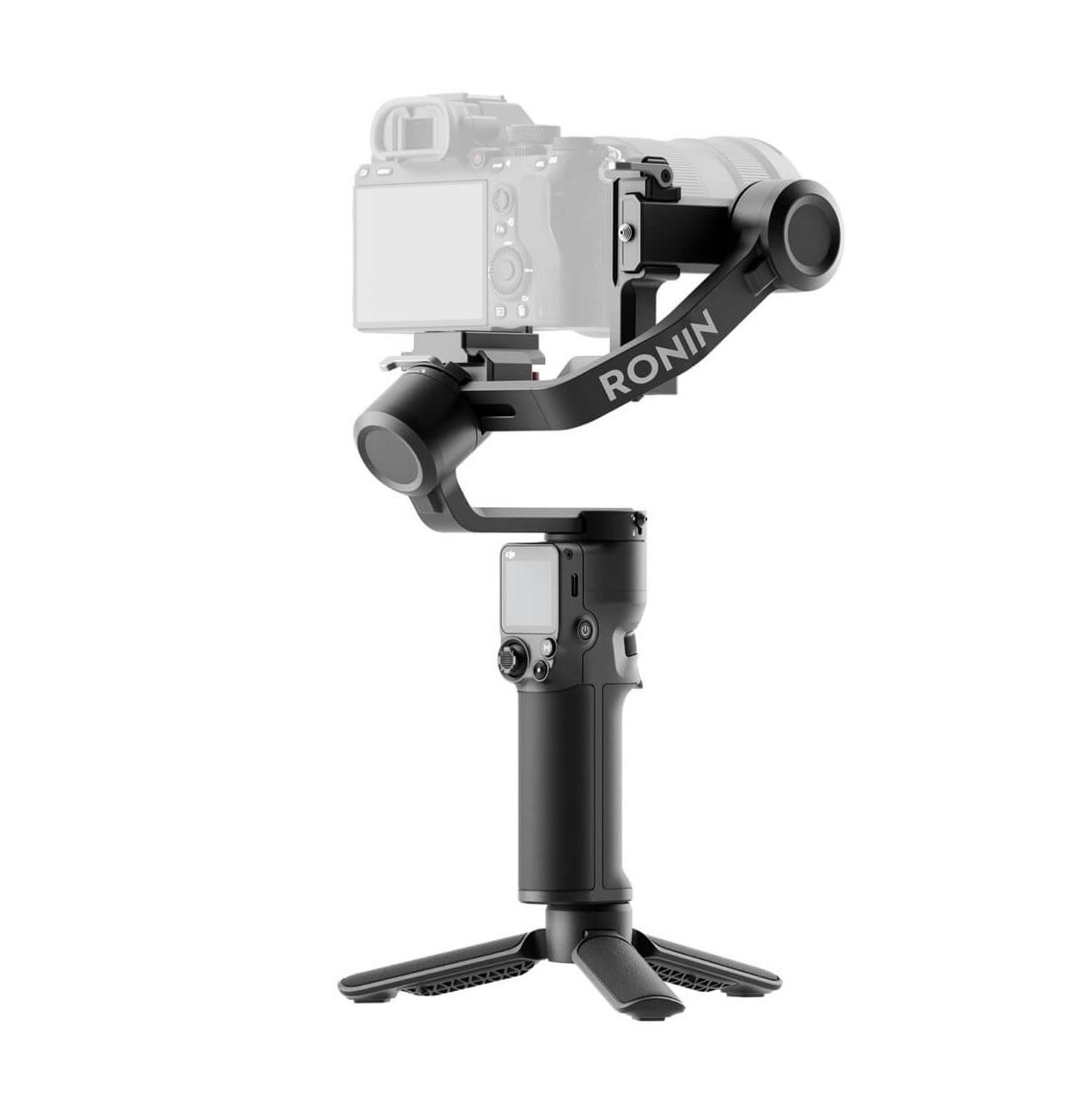

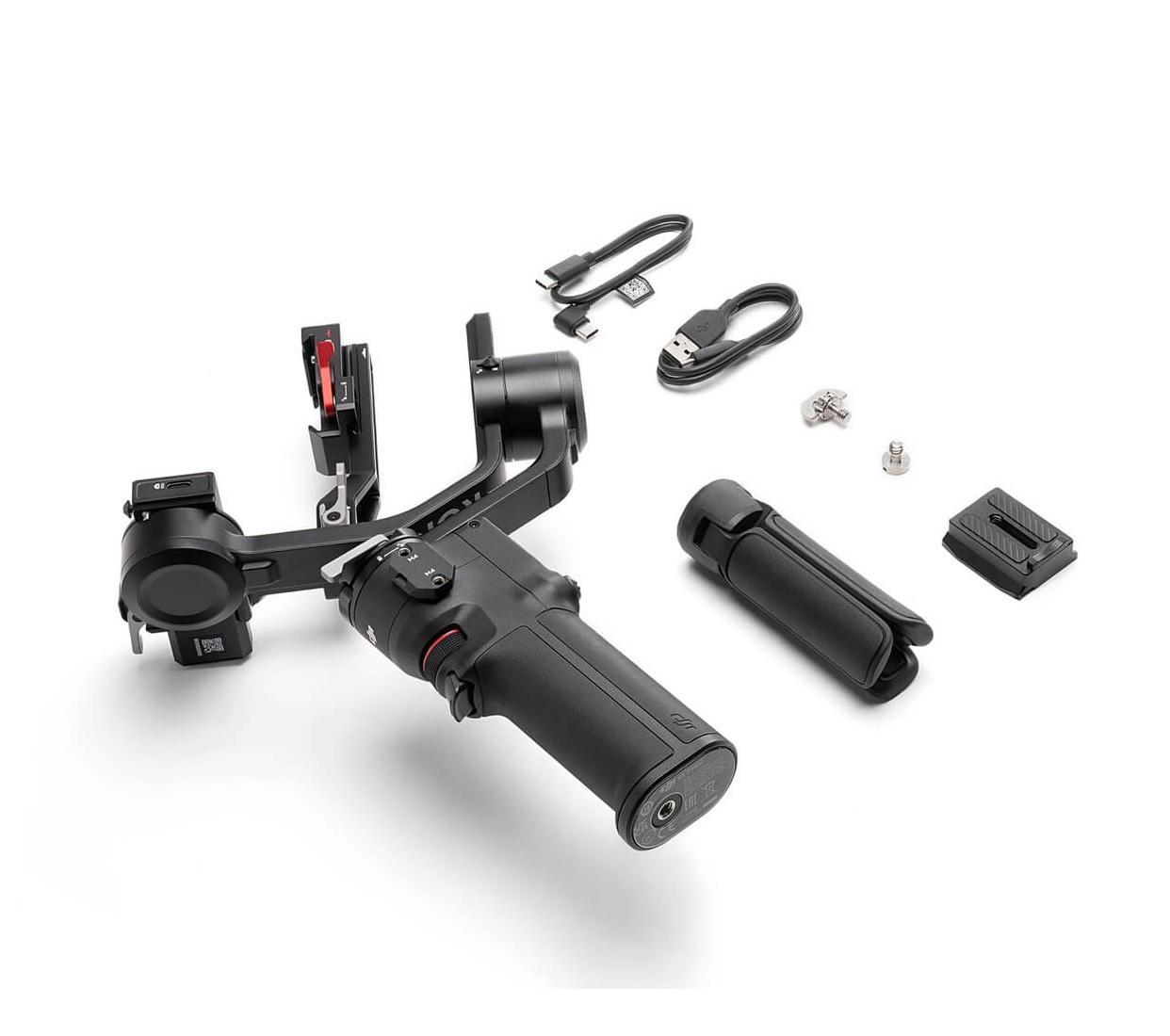

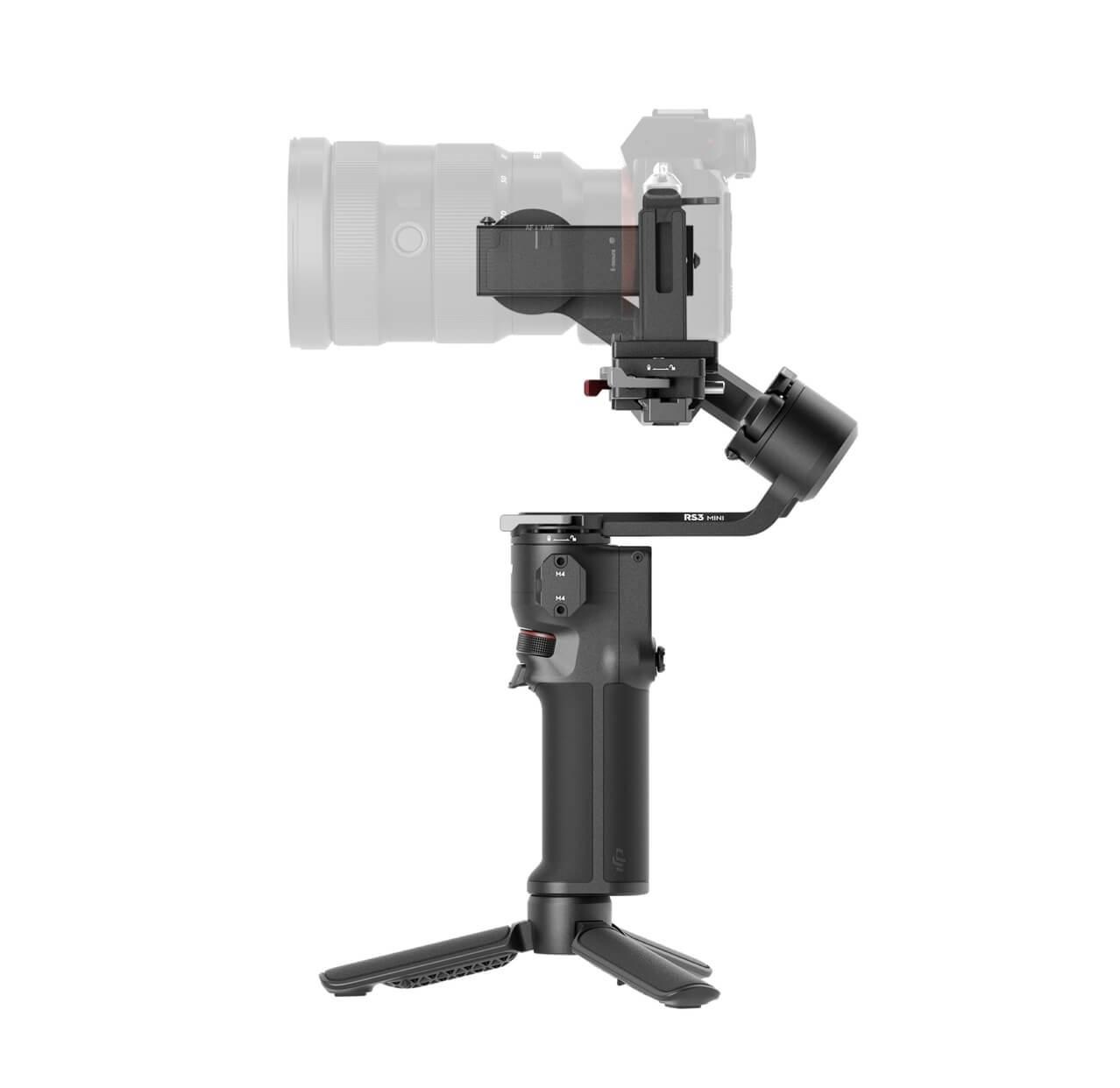

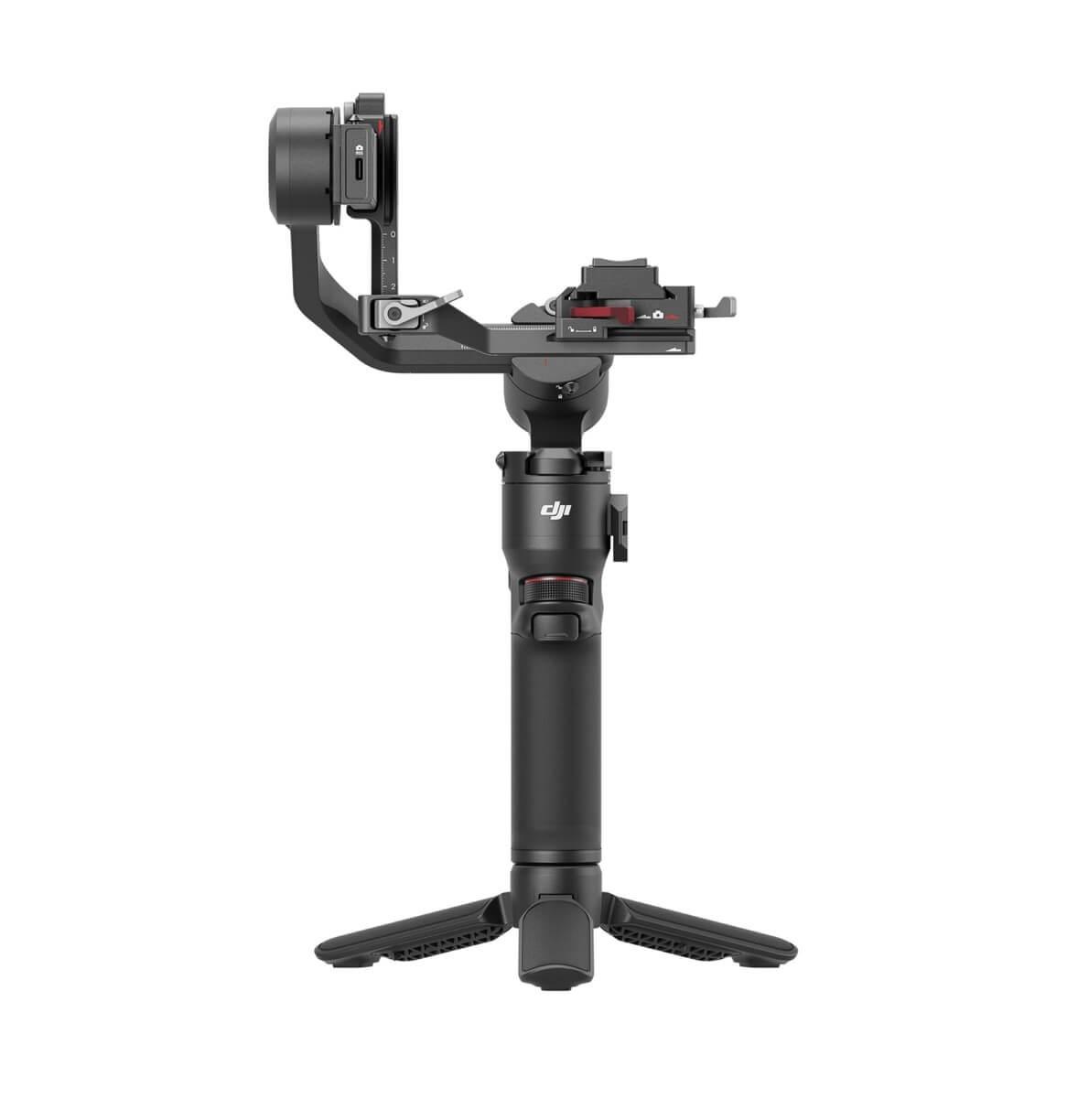

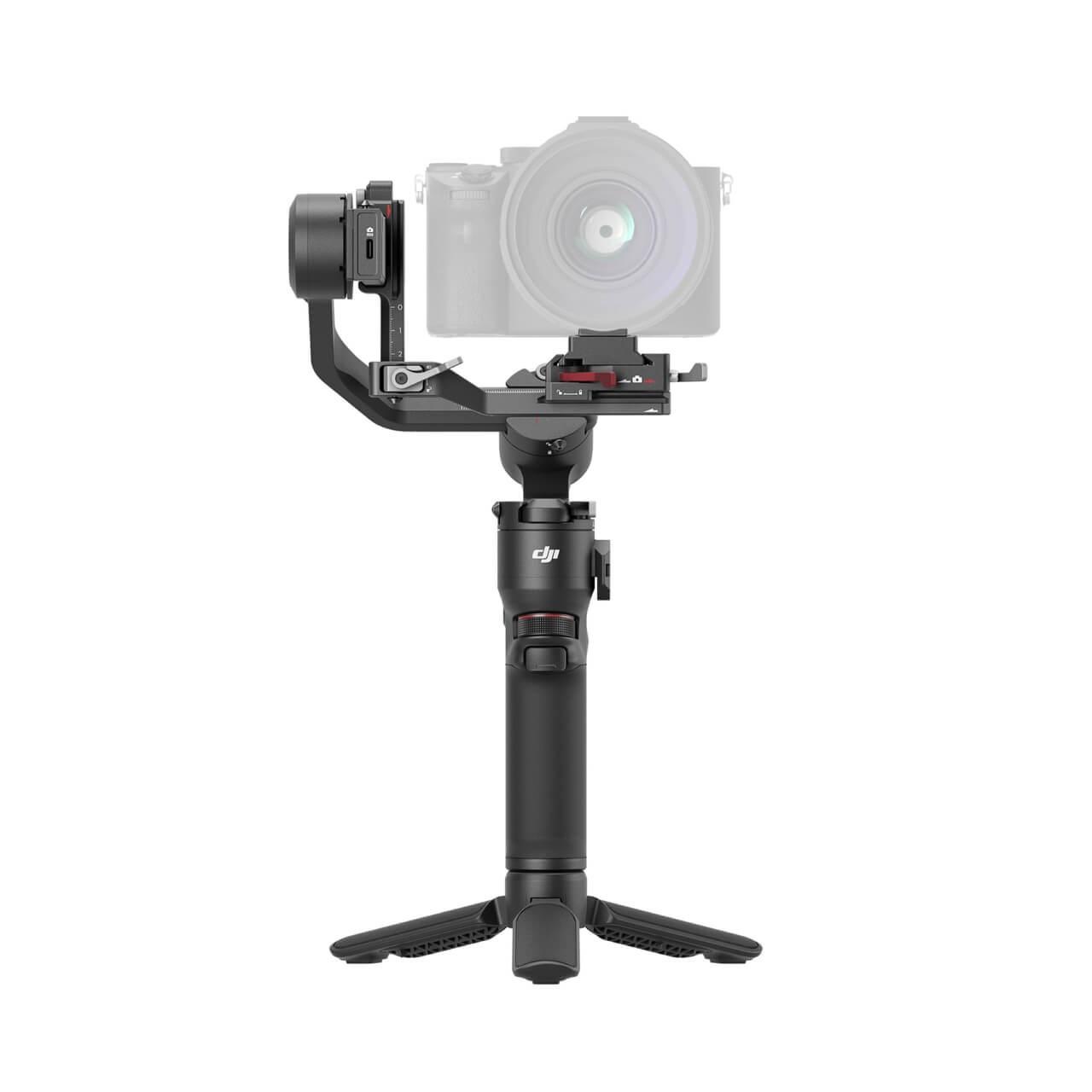

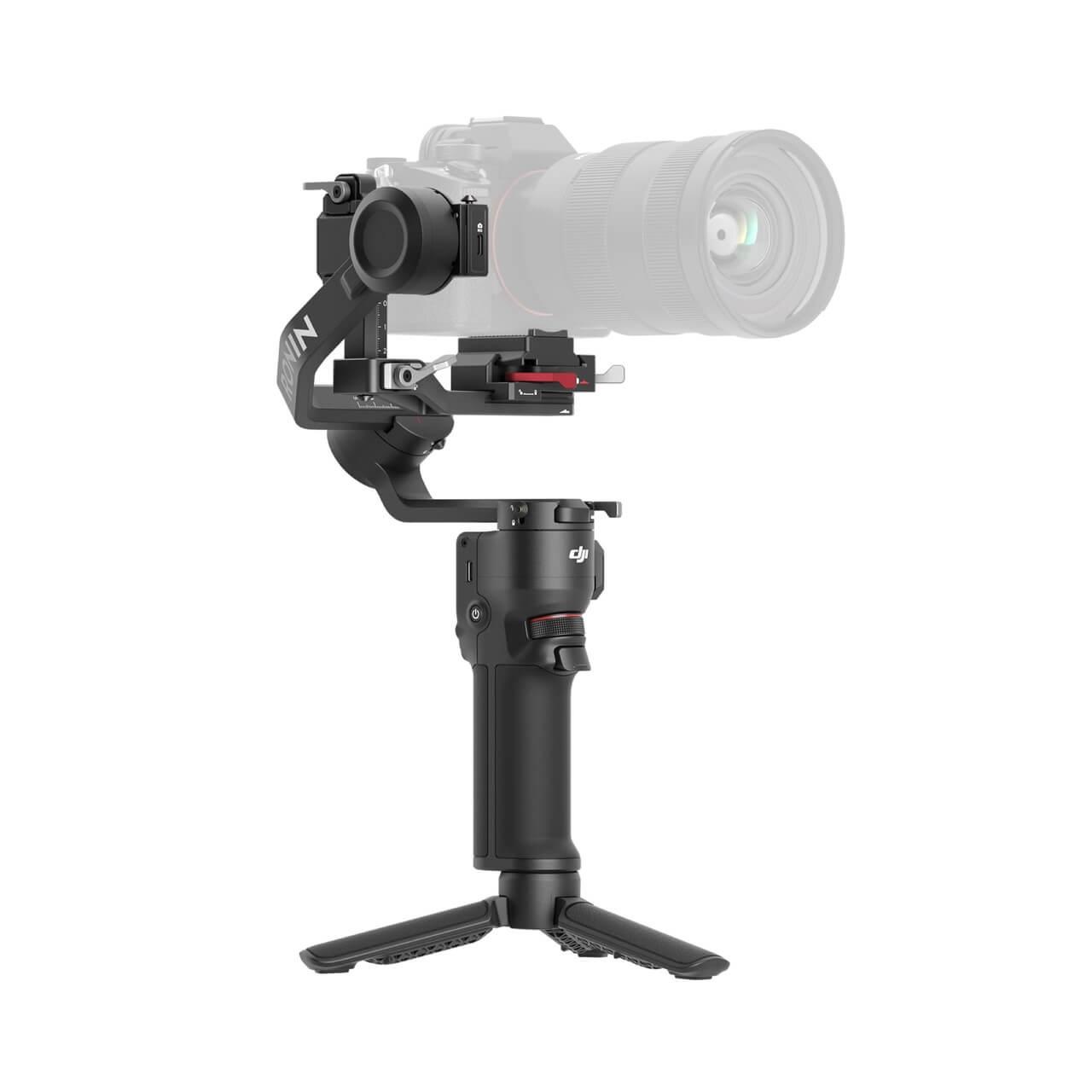

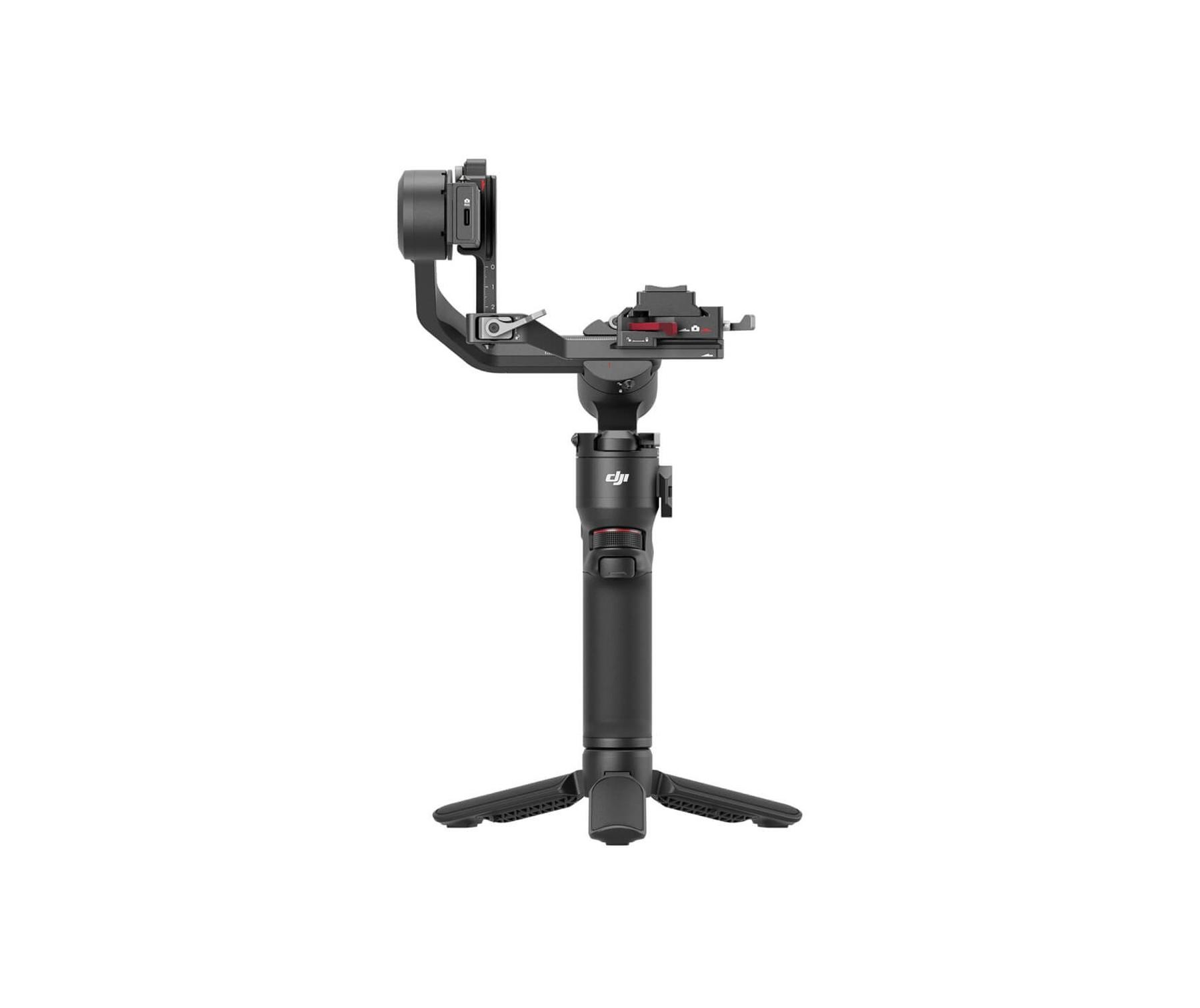

DJI RS 3 Mini

Accessory Port
1/4"-20 Mounting Hole
RSS Camera Control Port (USB-C)
NATO Expansion Port

Battery
Model: HB7-2450mAh-7.2
Type: 18650 Li-ion 2S
Capacity: 2450 mAh
Energy: 17.64 Wh
Operating Time: 10 hours [1]
Charging Specification: 5 V/2 A
Charging Time: Approx. 2.5 hours [2]
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections
Bluetooth 5.1
USB-C Charging Port

Ronin App Requirements
iOS 11.0 or above
Android 7.0 or above

Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Tested Payload
0.4-2 kg (0.8-4.4 lbs)

Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s

Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -10° to +110°

Operating Frequency
2.4000-2.4835 GHz

Bluetooth Transmitter Power
<4 dBm

Operating Temperature
-10° to 45° C (14° to 113° F)

Weight
Gimbal: 795 g (1.75 lbs) in portrait mode and 850 g (1.8 lbs) in horizontal shooting mode (both including the Quick-Release Plate and excluding the Extended Grip/Tripod)
Extended Grip/Tripod: Approx. 128 g (0.2 lbs)

Dimensions
Folded: 323×195×98 mm (L×W×H, height excludes the Extended Grip/Tripod)
Unfolded: 180×159×296 mm (L×W×H, excluding camera and the Extended Grip/Tripod)

1. Measured with the equipment in a level and stationary state and the gimbal balanced. When the gimbal is in motion, the operating time will be reduced.

2. Tested in a 25° C (77° F) environment while using a 10W charger.
